Removing the driven half-pulley bearing
- Check there are no signs of wear and/or noisi-
ness; - Replace with a new one if there are.
- Remove the retaining ring using two flat blade
screwdrivers.
- Support the pulley bushing adequately from the
threaded side using a wooden surface.

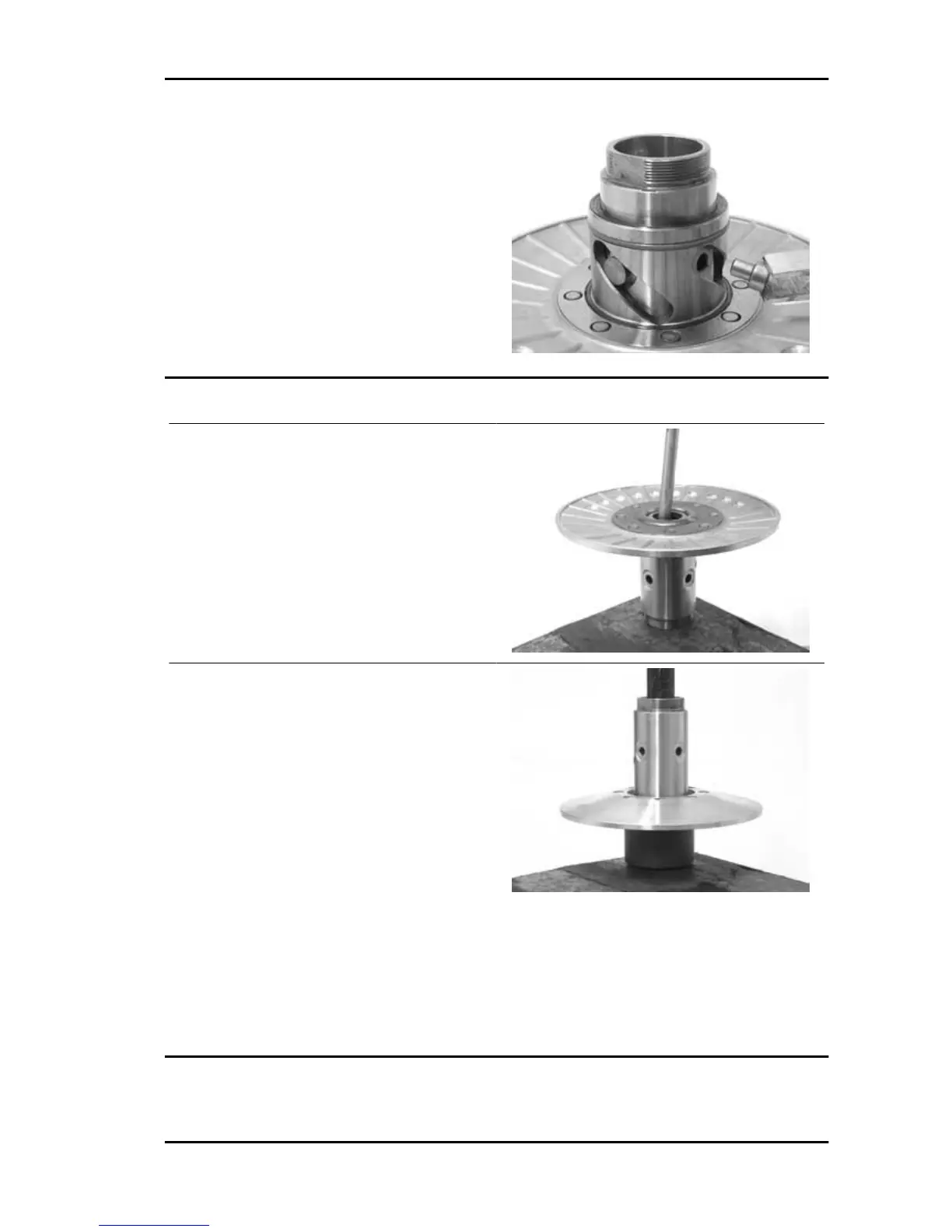

- Using a hammer and pin, knock the ball bearing
out as shown in the figure.
- Support the pulley properly using the bell as
shown in the figure.
Specific tooling
001467Y035 Belle for OD 47-mm bearings
- Remove the roller bearing using the modular punch.
Specific tooling
020376Y Adaptor handle
020456Y Ø 24 mm adaptor
020363Y 20 mm guide
Inspecting the driven fixed half-pulley
- Remove the spacer, the clutch bell and the whole driven pulley unit.
Carnaby 125 - 200 Engine
ENG - 107
