AGIP CITY HI TEC 4T Engine oil
SAE 5W-40 Synthetic oil that exceed the requirements of API SL, ACEA A3, JASO MA specifications

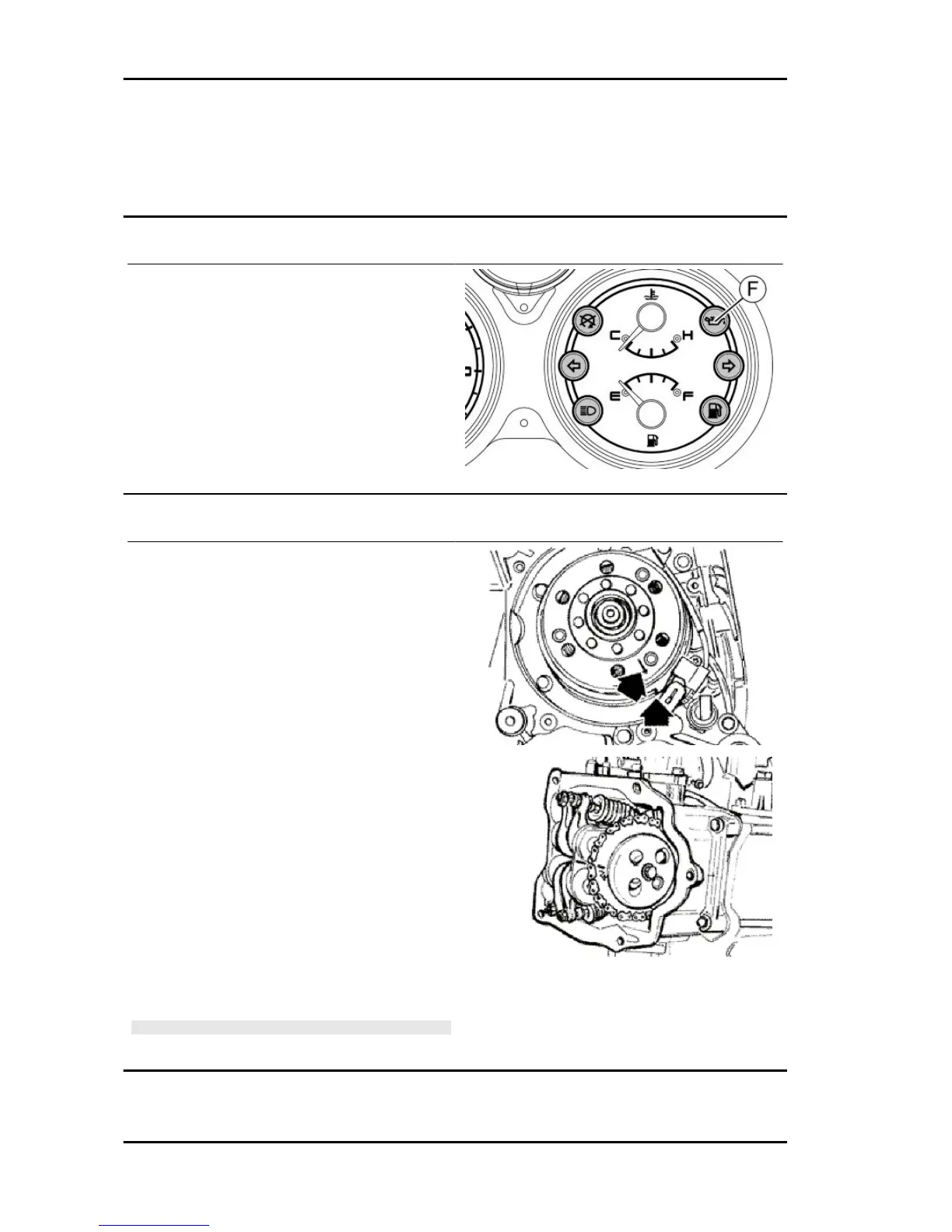

Oil pressure warning light
The vehicle is equipped with a warning light «F»
on the instrument panel that lights up when the key
is turned to «ON». However, this light should
switch off once the engine has been started.
If the light turns on during braking, at idling
speed or while turning a corner, it is necessary
to check the oil level and the lubrication sys-
tem.
Checking the ignition timing
-Remove the 4 fixing screws and move away from
the engine the flywheel cover fitted with a water
pump and cooling manifolds.
-Rotate the flywheel until the reference matches
the crankcase operation end as shown in the figure
(TDC). Make sure that the 4V reference point on
the camshaft control pulley is aligned with the ref-
erence point on the head as shown in the second
figure. If the reference mark is opposite the indi-
cator on the head, make the crankshaft turn once
more.
-The TDC reference mark is repeated also be-
tween the flywheel cooling fan and the flywheel
cover.
To use this reference mark, remove the spark plug
and turn the engine in the opposite direction to the
normal direction using a calliper spanner applied
to the camshaft command pulley casing.
N.B.
TIME THE TIMING SYSTEM UNIT IF IT IS NOT IN PHASE.
Maintenance Carnaby 125 - 200
