PIAGGIO Carnaby 125 - Rear Brake Disc

ALL THE SEALS AND GASKETS MUST BE REPLACED EV-
ERY TIME THE CALLIPER IS SERVICED.
Locking torques (N*m)
Brake fluid pipe-calliper fitting 20 ÷ 25 Pad fas-
tening pin 19.6 ÷ 24.5
Refitting
- When refitting, tighten the nuts to the prescribed
torque.
- Reconnect the brake pipe.
- Purge the system.
N.B.
WHILE REFITTING, REPLACE THE COPPER GASKETS ON
THEIR FITTINGS.
Locking torques (N*m)
Oil bleed screw 12 - 16 Screw tightening calliper
to the support 20 ÷ 25 Brake fluid pipe-calliper
fitting 16 ÷ 20

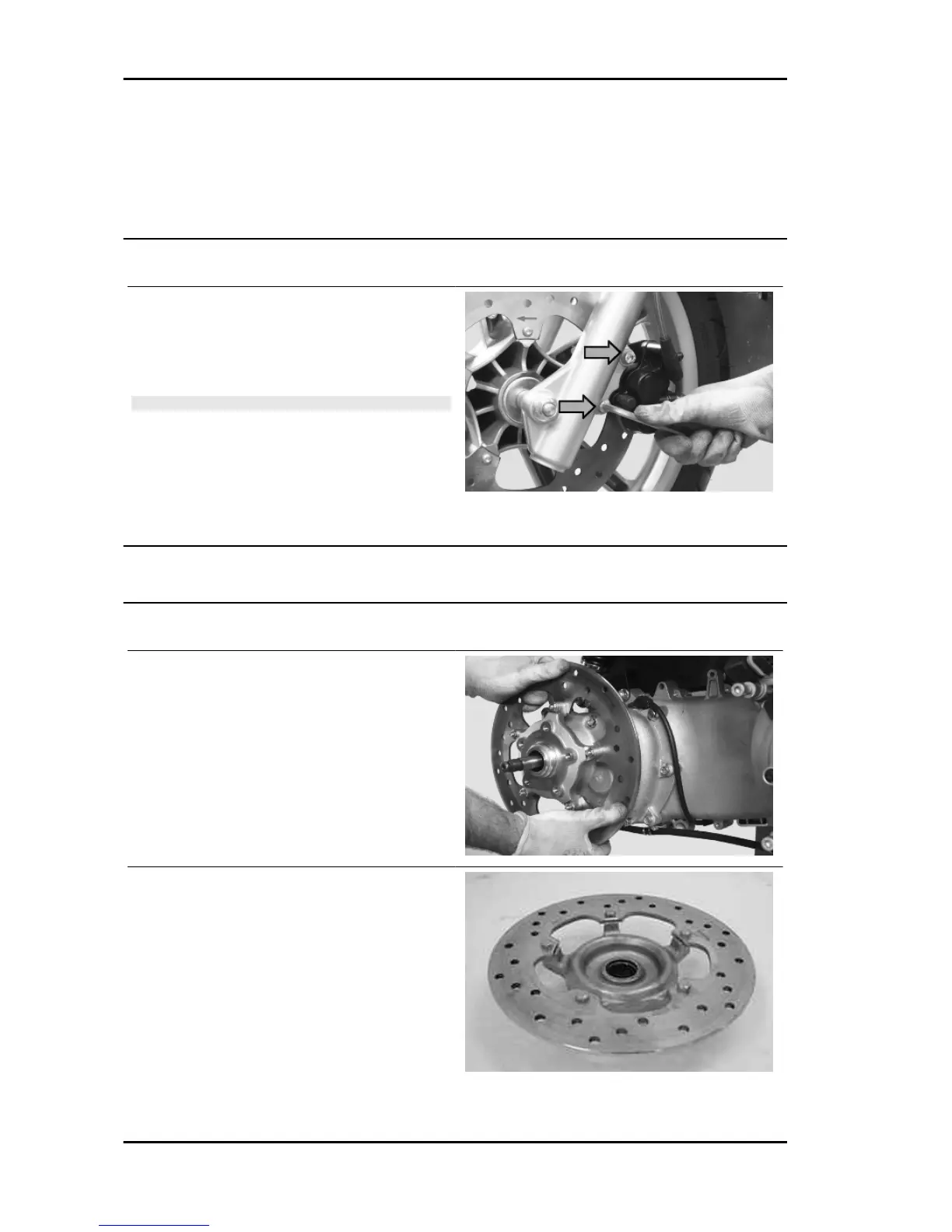

Rear brake disc
Removal
- Remove the rear wheel.
- Remove the brake calliper.
- Remove the hub and the brake disc.
- Carry out the same procedure with the front brake
disc.
See also
Braking system Carnaby 125 - 200
BRAK SYS - 222
