Fuses

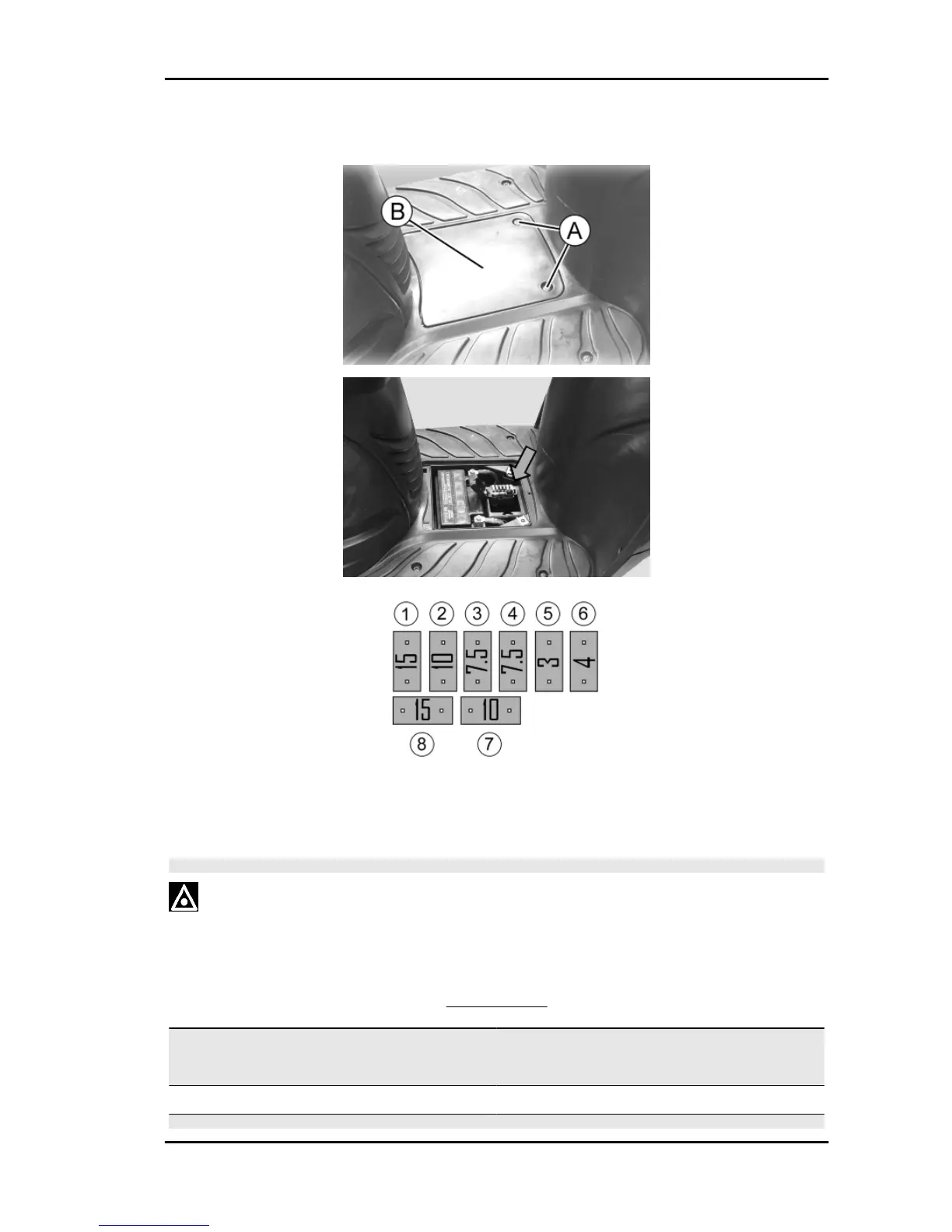

The electrical system has six protection fuses. To reach the board of fuses, unscrew the two screws
«A» and remove the battery cover «B».
CAUTION
BEFORE REPLACING A BLOWN FUSE, FIND AND SOLVE THE FAILURE THAT CAUSED IT TO
BLOW. NEVER TRY TO REPLACE THE FUSE WITH ANY OTHER MATERIAL (E.G., A PIECE OF
ELECTRIC WIRE).
FUSE TABLE
Specification
Desc./Quantity
Fuse No. 1 Capacity:15A
Protected circuits:Electric fan, Battery recharge circuit, Elec-
tronic ignition device, Clock, Electronic ignition device, Wiring
for antitheft device, Lines protected by fuses 4.5 and 6.
Fuse No. 2 Capacity:15A
Protected circuits:Headlight Remote control.
Fuse No. 3 Capacity:7.5 A
Carnaby 125 - 200 Electrical system
ELE SYS - 89
