If no voltage is detected, check the cable harness,
the connections and make sure the 15A main fuse
(No. 1) is in working order; otherwise, proceed as
follows:

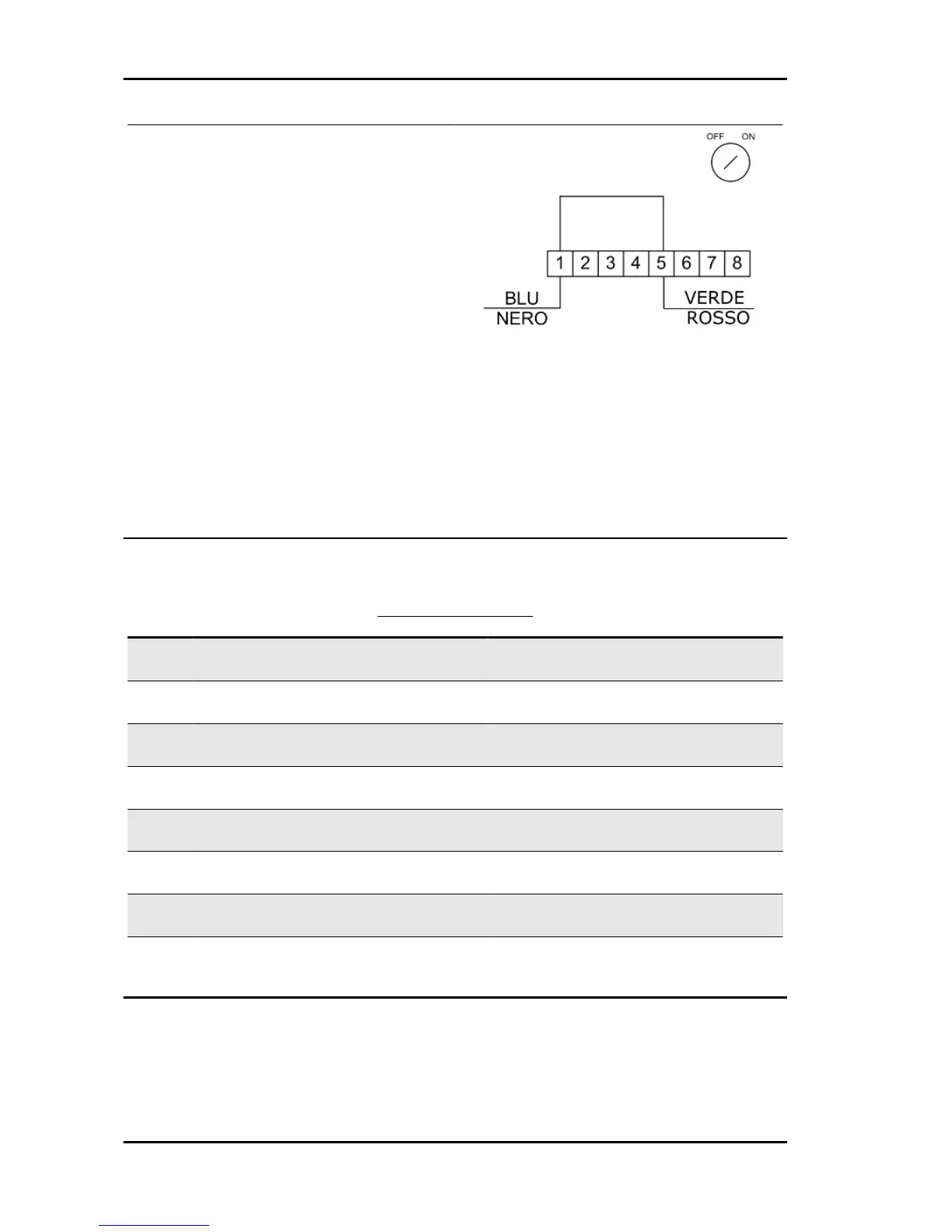

- Jump terminals No. 1 (Blue-Black) and No. 5
(Green-Red) (see figure) and activate the turn in-
dicator switch alternately to the right and left. Make
sure the lights turn on.
If they do, replace the control unit because it is
faulty. If they do not turn on, check the control unit-
turn indicator switch connection cable harness;
then, repeat the test.
If the cable harness is in good conditions and the
turn indicators still do not turn on, replace the turn
indicator switch because it is faulty.
Lights list
LIGHT BULB TABLE
Specification
Desc./Quantity
1 High-beam light bulb Type: HALOGEN (H11)
Power: 12V - 55W
Quantity: 1
2 Low-beam bulb Type: HALOGEN (H11)
Power: 12V - 55W
Quantity: 1
3 Front tail light bulb Type: ALL GLASS
Power: 12V - 5W
Quantity: 2
4 Instrument panel bulb Type: ALL GLASS
Power: 12V - 1.2W
Quantity: 5
5 Front turn indicator bulb Type: SPHERICAL
Power: 12V - 10W
Quantity: 1 RHS + 1 LHS
6 Rear turn indicator bulb Type: SPHERICAL
Power: 12V - 10W
Quantity: 1 RHS + 1 LHS
7 Twin-filament stop/tail light bulb Type: SPHERICAL
Power: 12V - 5/21W
Quantity:1
8 License plate light bulb Type: ALL GLASS
Power: 12V - 5W
Quantity: 1
Electrical system Carnaby 125 - 200
ELE SYS - 88
