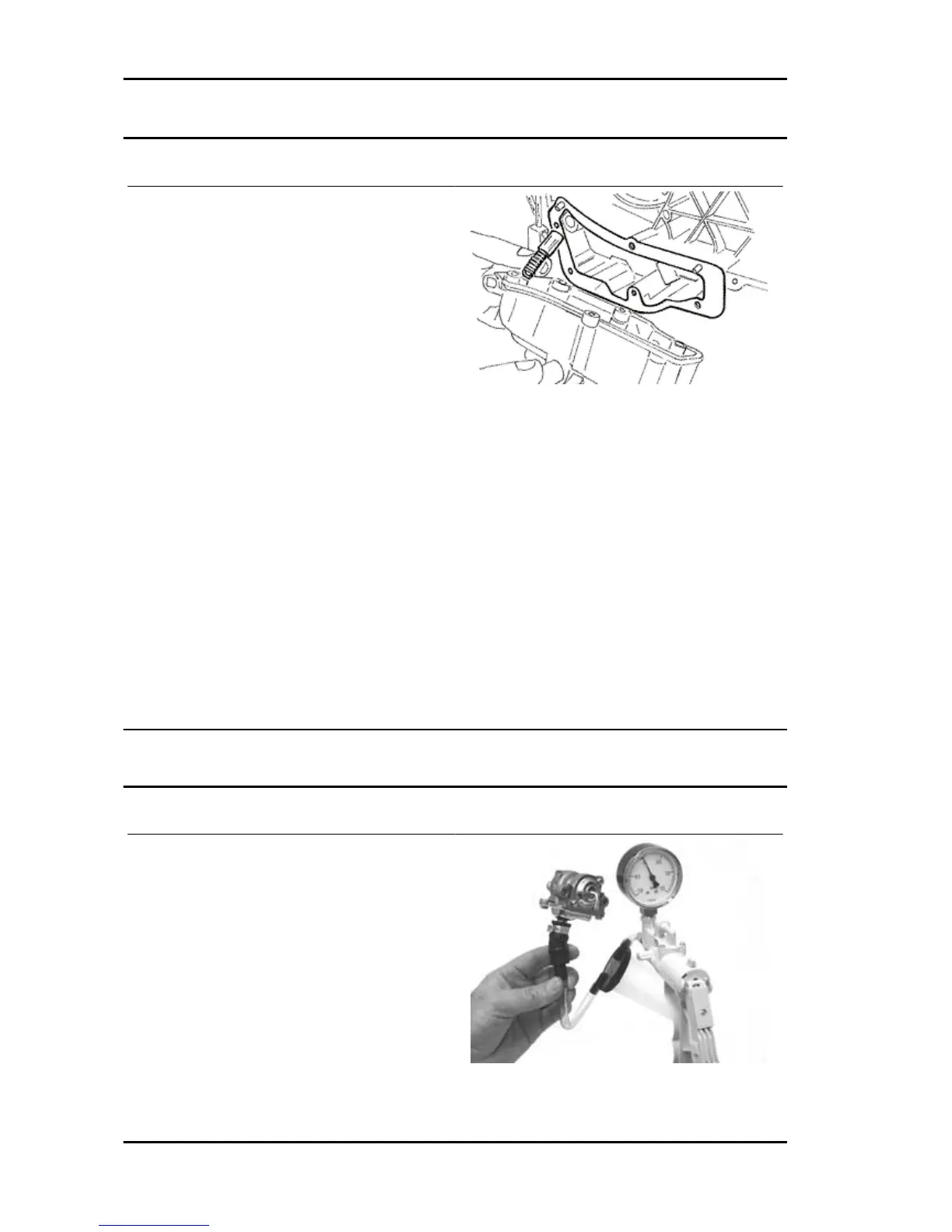

Refitting the oil sump
- Refit the by-pass valve plunger in its housing.
- Insert the pressure-regulating spring.
- Fit a new sump seal.
- Refit the two centring dowels.
- Refit the sump, taking care to locate the spring in
the appropriate recess machined into the inside of
the sump.
- Refit the rear brake cable brackets and the
screws in the reverse order from which they were
removed.
- Tighten the screws to the prescribed torque.
- Refit the drive pulley assembly, the drive belt, the
sprocket wheel and the transmission cover, as de-
scribed in the "Transmissions" chapter.
- When testing the lubrication system, refer to
chapter "Crankcase and Crankshaft", regard-
ing lubrication of the crankshaft and connect-
ing rod
Locking torques (N*m)
Oil sump screws 10 ÷ 14
SAS valve
Inspecting the one-way valve
- Remove the SAS valve.
- Provisionally assemble the rubber coupling of the
SAS valve outlet to ensure tightness.
- Connect the MITYVAC vacuum pump to the rub-
ber coupling as shown in the photograph.
- Set the pump to the low-pressure position (VAC-
UUM).
- Operate the pump slowly.
- Check that the one way valve allows the air to
pass through causing a slight vibration.
Engine Carnaby 125 - 200
ENG - 170
