- Preassemble the movable half-pulley with the roller contrast plate by putting the rollers in their housings
with the larger support surface touching the pulley according to the direction of rotation.
- Check that the roller contact plate does not have flaws and is not damaged on the grooved edge.
- Mount the complete bushing unit on the driving shaft.
- Fit the driven pulley/Clutch/belt unit on the engine.
Refitting the transmission cover
- Check the presence of the 2 centring dowels and
the correct installation of the sealing gasket for the
oil sump on the transmission cover.
- Replace the cover tightening the 10 screws at the
specified torque.
- Refit the oil loading cap/bar.

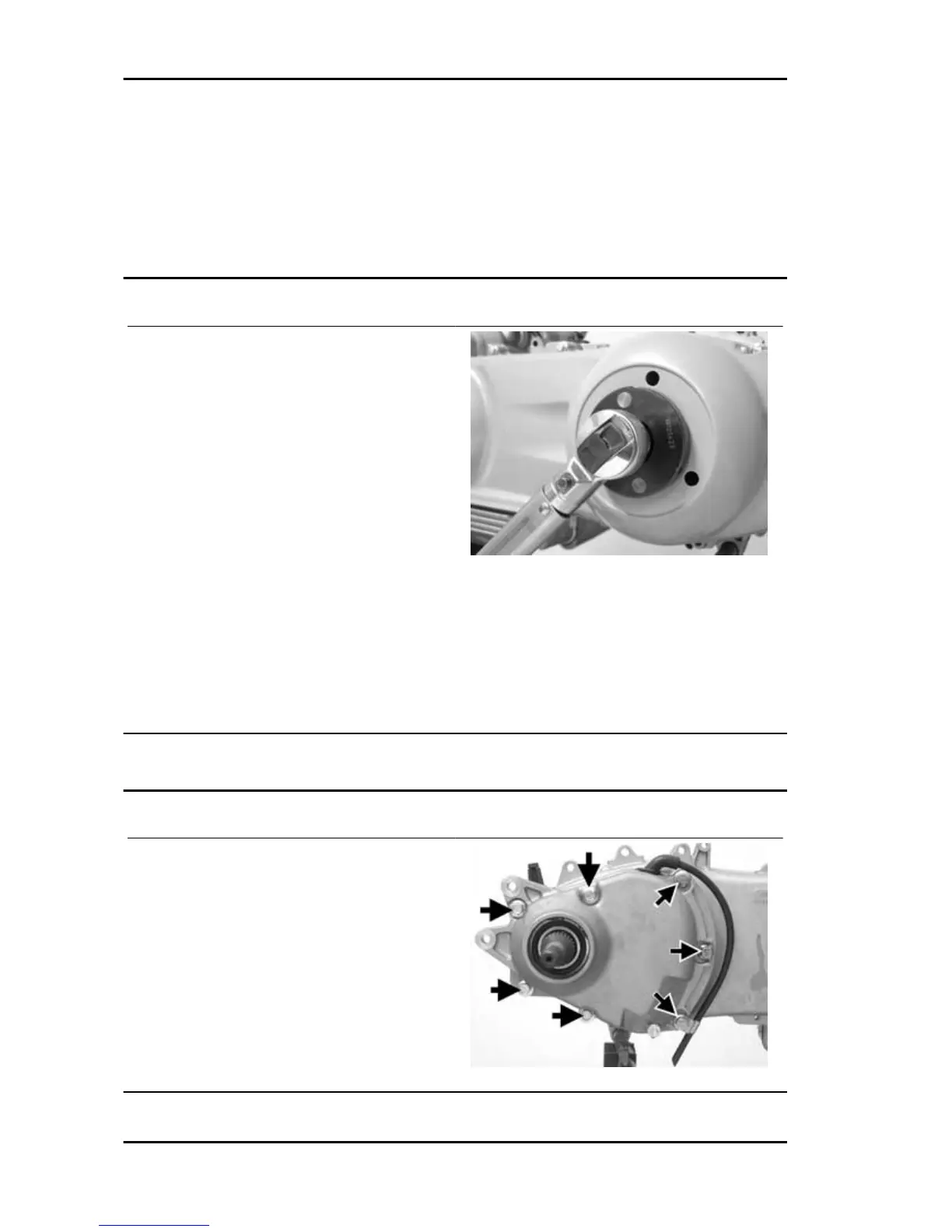

- refit the steel washer and the driven pulley nut.
- Tighten the nut to the prescribed torque using the
lock wrench and the torque wrench tools.
- Replace the plastic cover.
Specific tooling
020423Y driven pulley lock wrench
Locking torques (N*m)
Transmission cover screws 11 ÷ 13 Driven pul-
ley shaft nut 54 ÷ 60
End gear
Removing the hub cover
- Empty the rear hub through the oil drainage plug.
- Remove the 7 flanged screws indicated in the
figure.
- Remove the hub cover and its gasket.
Engine Carnaby 125 - 200
ENG - 120
