020363Y 20 mm guide
Refitting the hub bearings

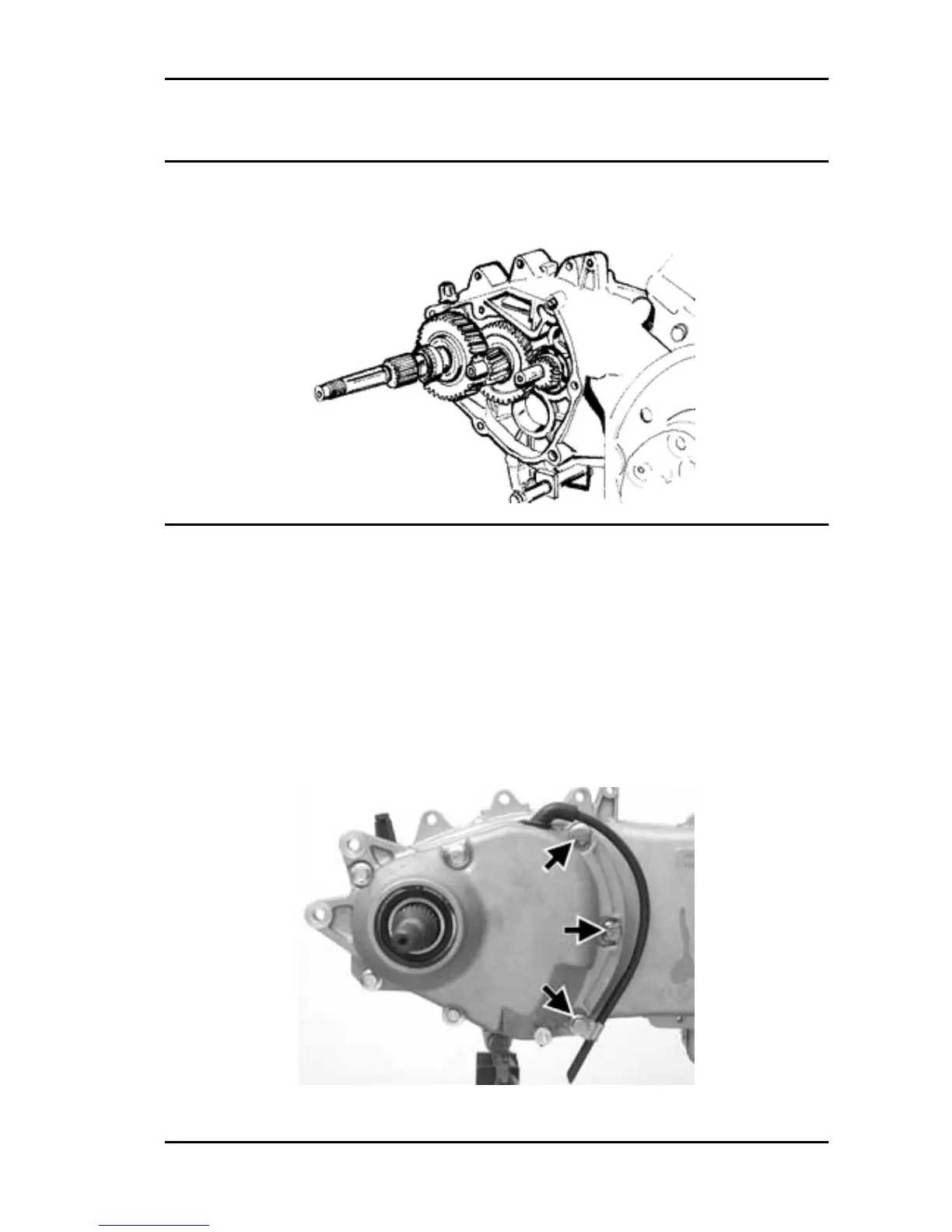

- Install the three shafts in the engine crankcase as shown in the figure.
Refitting the ub cover
- Fit a new gasket together with the centring dowels.
- Seal the gasket of the breather pipe using black silicone sealant.
- Fit the gearbox cover, making sure the breather pipe is in the correct position.
- Place the 3 shortest screws, identifiable by their different colour, as shown in the figure.
- Fasten the breather pipe support bracket with the lower short screw.
- Assemble the remaining 4 screws and tighten the 7 screws to the prescribed torque.
Locking torques (N*m)
Rear hub cover screws 24 ÷ 27
Carnaby 125 - 200 Engine
ENG - 125
