PIAGGIO Carnaby 125 - Engine Service Procedures; Exhaust Assembly and Engine Removal

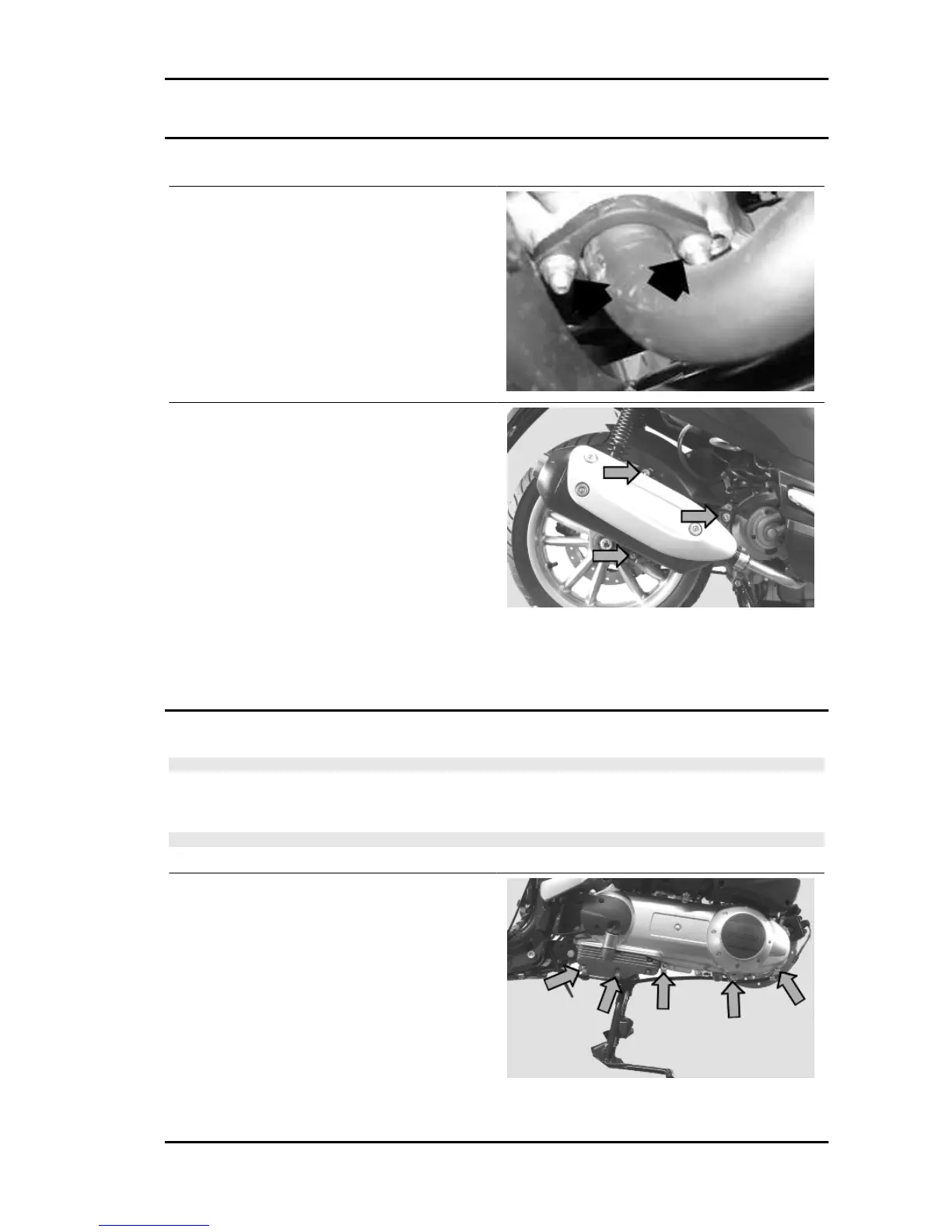

Exhaust assy. Removal
- Undo the two exhaust manifold fixings on the
head.
- Undo the three screws fixing the muffler to the
support arm.
- Remove the full muffler unit.
To refit, carry out the removal operations in reverse order, observing the prescribed tightening torques.
Locking torques (N*m)
Nuts fixing muffler to support arm 27 ÷ 30 Nut fixing muffler to cylinder head 16 ÷ 18
Removal of the engine from the vehicle
WARNING
IN CASE OF OPERATIONS OVERLAPPING IN THE CROSS-REFERENCES TO OTHER CHAP-
TERS, INTERPRET THESE OPERATIONS LOGICALLY, THUS AVOIDING THE UNNECESSARY
REMOVAL OF COMPONENTS.
WARNING
CARRY OUT THESE OPERATIONS WHEN THE ENGINE IS COLD.
To remove the engine from the frame, proceed as
follows:
- Disconnect the battery.
- Remove the helmet compartment.
- Remove the lower spoiler.
Remove the full muffler unit.
- Remove the rear wheel.
- Remove the rear brake calliper and release the
pipe from the clamps in the engine lower section.
Carnaby 125 - 200 Engine from vehicle
ENG VE - 95
