Locking torques (N*m)
Screw tightening calliper to the support 20 ÷ 25 Pad fastening pin 19.6 ÷ 24.5

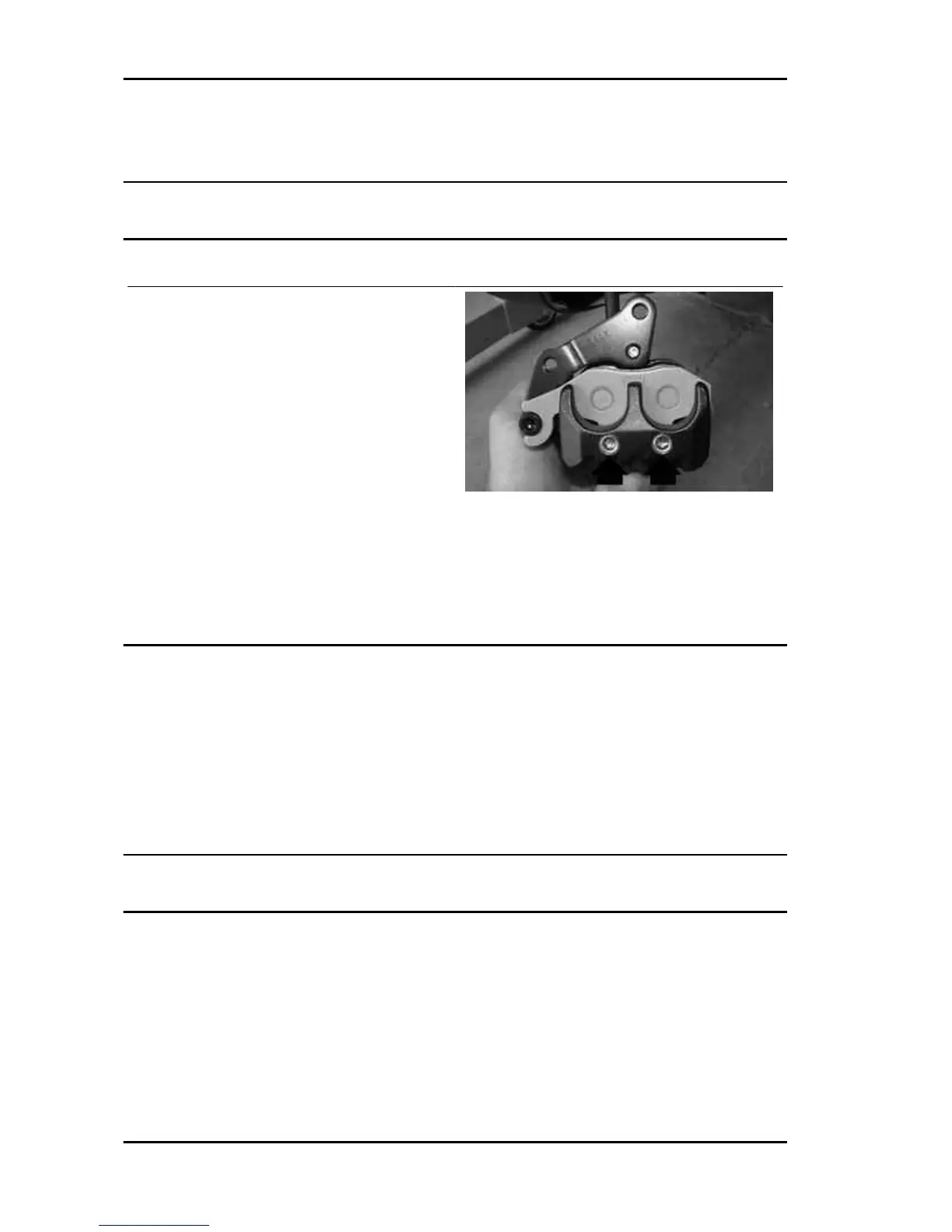

Rear brake pads
Removal
Proceed as follows:
- Remove the rear brake calliper
- Remove the two pins holding the brake pads.
- Remove the pads, paying attention to the pad re-
taining spring.
- Check the thickness of the pads.
If the thickness is less than the minimum value,
replace the pads with new pads.
Characteristic
Minimum value
1.5 mm
See also
Removal
Refitting
Carry out the installation by analogy with the procedure described for the installation of the rear brake
calliper.
- Tighten the two calliper fixing screws to the prescribed tightening torque.
Locking torques (N*m)
Pad fastening pin 19.6 ÷ 24.5 Screw tightening calliper to the support 20 ÷ 25 Fixing screws for
the calliper support on the engine 20 ÷ 25
Fill
Braking system Carnaby 125 - 200
BRAK SYS - 226
