RL78/G13 CHAPTER 1 OUTLINE

R01UH0146EJ0100 Rev.1.00 7

Sep 22, 2011

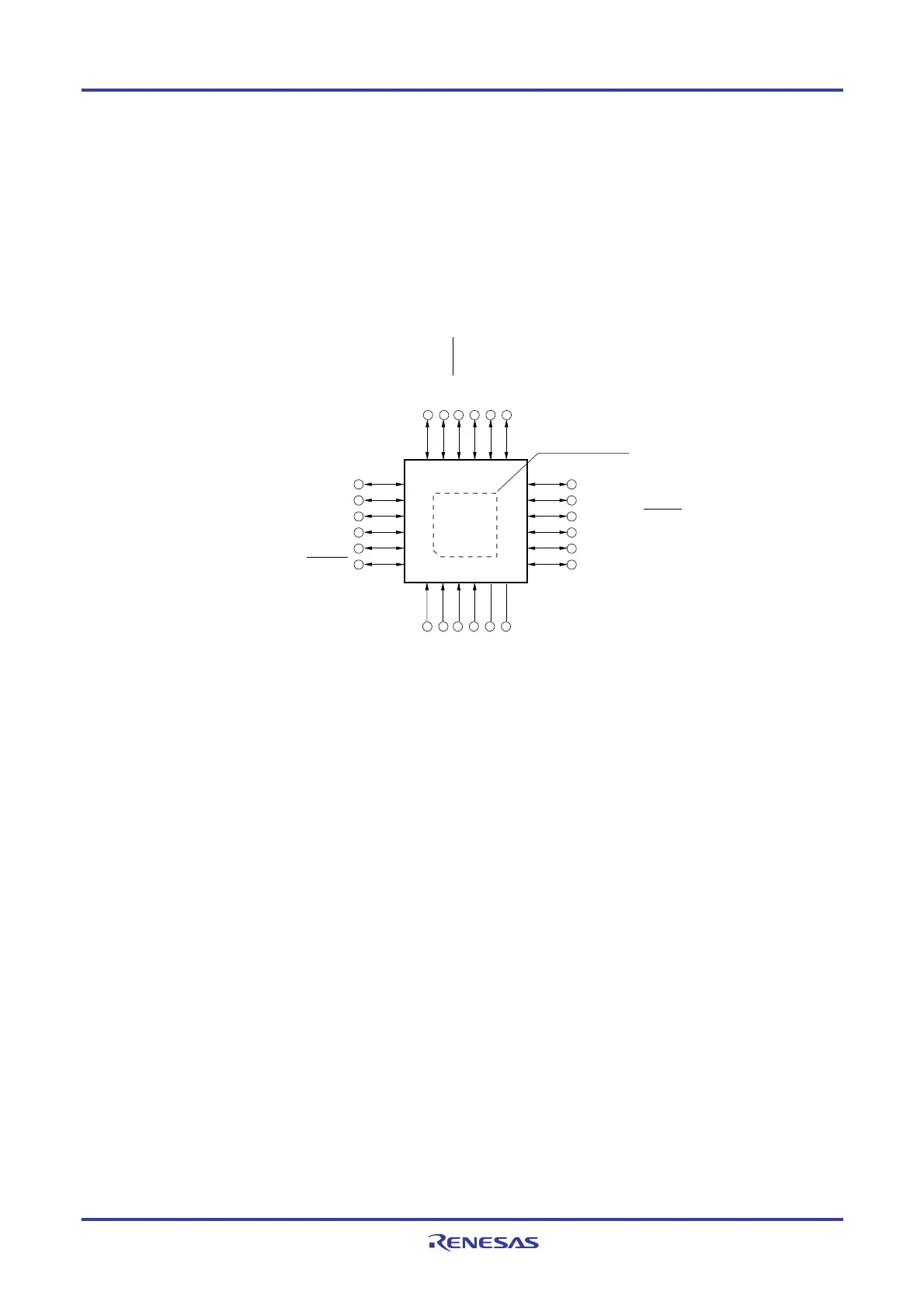

1.3.2 24-pin products

• 24-pin plastic WQFN (fine pitch) (4 × 4)

18 17 16 15 14 13

1 2 3 4 5 6

P21/ANI1/AV

REFM

P20/ANI0/AVREFP

P01/ANI16/TO00/RxD1

P00/ANI17/TI00/TxD1

P40/TOOL0

RESET

exposed die pad

P22/ANI2

P147/ANI18

P10/SCK00/SCL00

P11/SI00/RxD0/TOOLRxD/SDA00

P12/SO00/TxD0/TOOLTxD

P16/TI01/TO01/INTP5

P137/INTP0

P122/X2/EXCLK

P121/X1

REGC

VDD

P17/TI02/TO02/SO11

P50/INTP1/SI11/SDA11

P30/INTP3/SCK11/SCL11

P31/TI03/TO03/INTP4/PCLBUZ0

P61/SDAA0

P60/SCLA0

Caution Connect the REGC pin to Vss via a capacitor (0.47 to 1

F).

Remark For pin identification, see 1.4 Pin Identification.
