11.5 Input Voltage and Conversion Results
The relationship between the analog input voltage input to the analog input pins (ANI0 to ANI14, ANI16 to ANI26) and
the theoretical A/D conversion result (stored in the 10-bit A/D conversion result register (ADCR)) is shown by the following
expression.
SAR = INT ( × 1024 + 0.5)
ADCR = SAR × 64
or
( − 0.5) × ≤ V
AIN < ( + 0.5) ×
where, INT( ): Function which returns integer part of value in parentheses
V
AIN: Analog input voltage
AV
REF: AVREF pin voltage
ADCR: A/D conversion result register (ADCR) value
SAR: Successive approximation register
Figure 11-19 shows the relationship between the analog input voltage and the A/D conversion result.

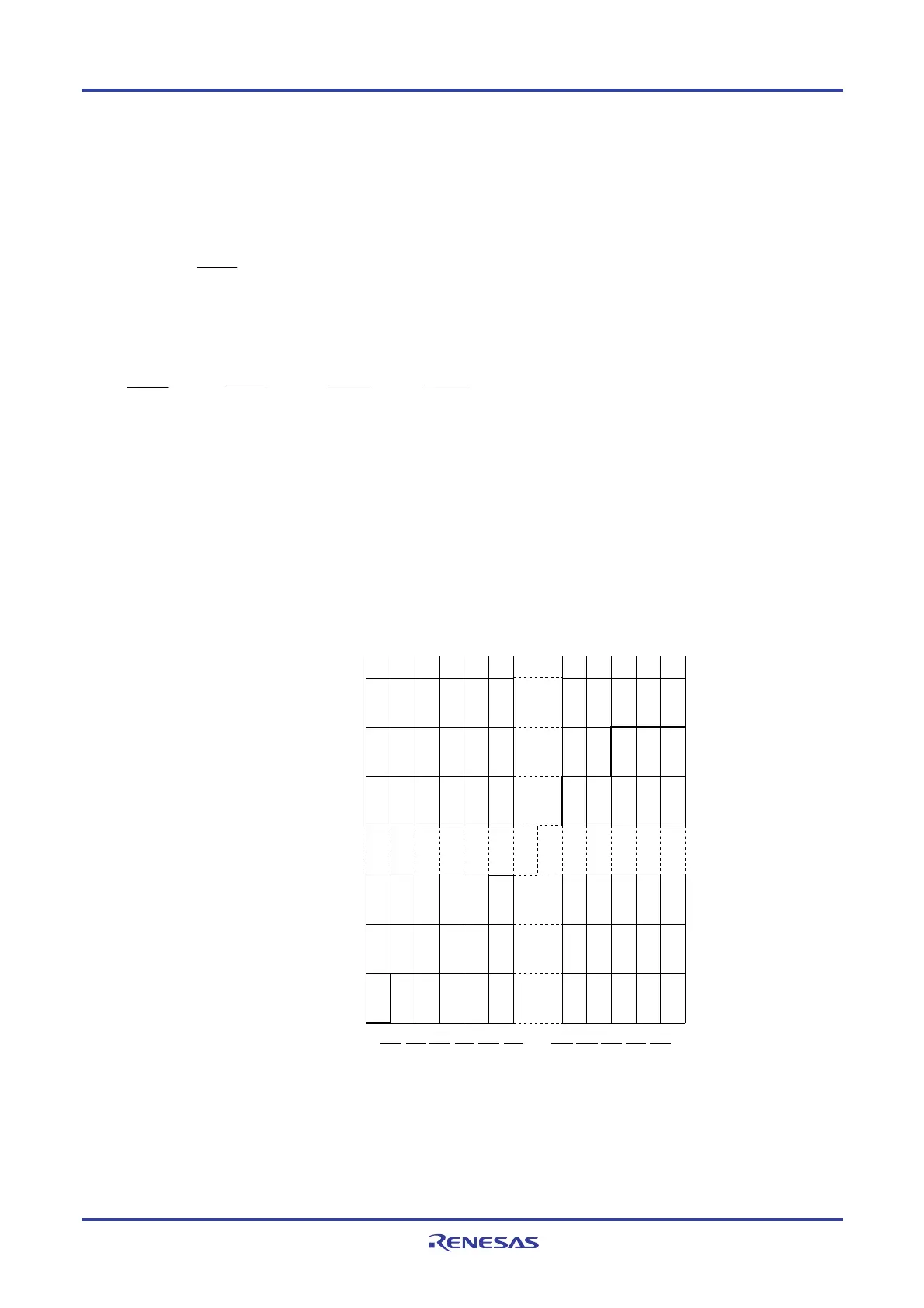

Figure 11-19. Relationship Between Analog Input Voltage and A/D Conversion Result
1023
1022
1021
3
2
1
0
FFC0H
FF80H
FF40H
00C0H
0080H
0040H
0000H
A/D conversion result
SAR ADCR
1
2048
1
1024
3
2048
2
1024
5
2048
Input voltage/AV
REF
3
1024
2043
2048
1022
1024
2045
2048
1023
1024
2047
2048
1
Remark AVREF: The + side reference voltage of the A/D converter. This can be selected from AVREFP, the internal
reference voltage (1.45 V), and V
DD.
