Renesas RL78/G13 User Manual

RL78/G13 CHAPTER 25 FLASH MEMORY
R01UH0146EJ0100 Rev.1.00 943
Sep 22, 2011
25.5.4 Communication commands
The RL78/G13 communicates with the dedicated flash memory programmer or external device by using commands.
The signals sent from the flash memory programmer or external device to the RL78/G13 are called commands, and the
signals sent from the RL78/G13 to the dedicated flash memory programmer or external device are called response.

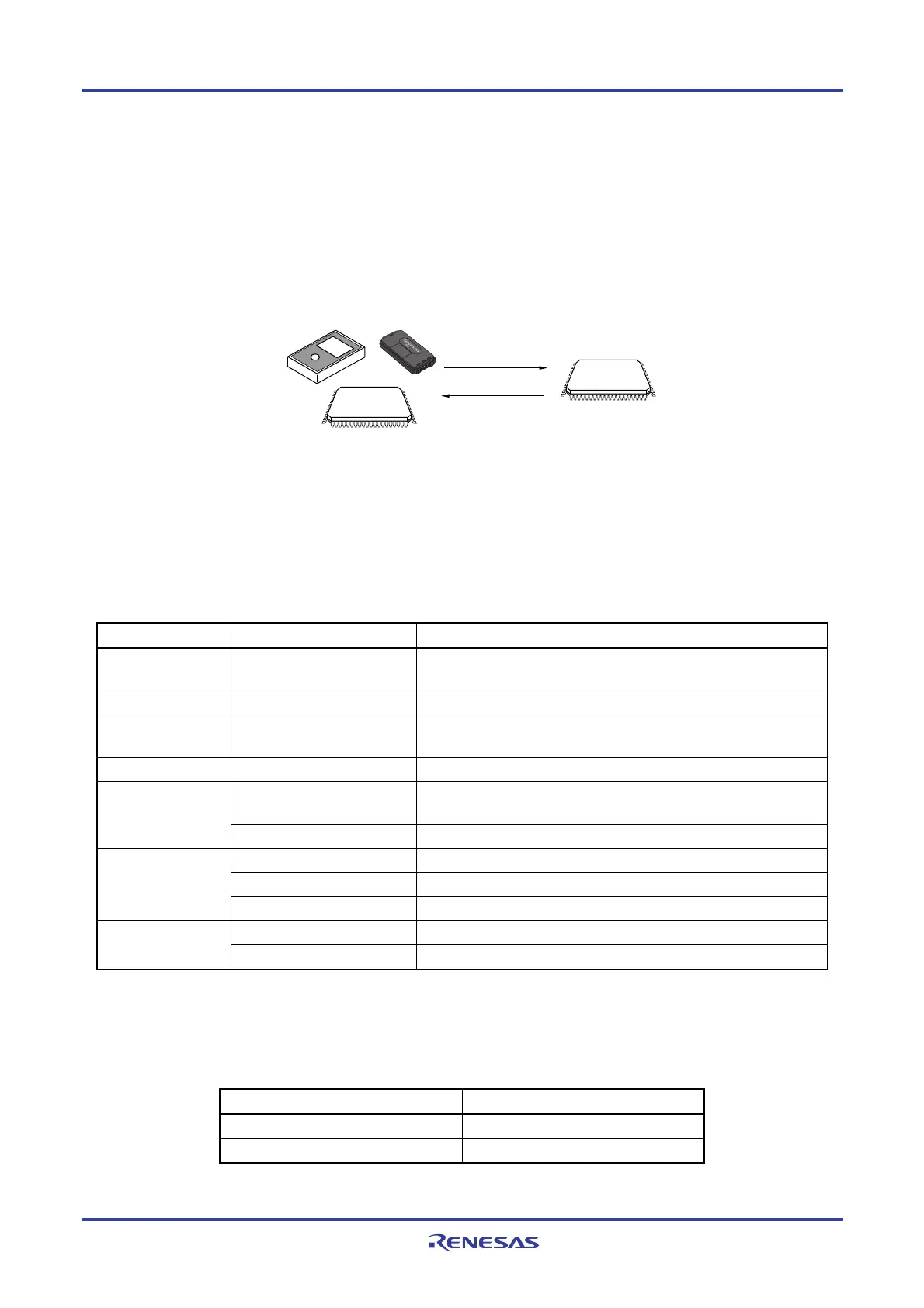

Figure 25-9. Communication Commands
Command
Response
RL78/G13
Dedicated flash
memory programmer
PG-FP5, FL-PR5
E1
External device
(such as microcontroller
and ASIC)
The flash memory control commands of the RL78/G13 are listed in the table below. All these commands are issued
from the programmer or external device, and the RL78/G13 perform processing corresponding to the respective
commands.
Table 25-7. Flash Memory Control Commands
Classification Command Name Function
Verify Verify
Compares the contents of a specified area of the flash memory with
data transmitted from the programmer.
Erase Block Erase Erases a specified area in the flash memory.
Blank check Block Blank Check
Checks if a specified block in the flash memory has been correctly
erased.
Write Programming Writes data to a specified area in the flash memory.
Silicon Signature
Gets the RL78/G13 information (such as the part number, flash memory
configuration, and programming firmware version).
Getting information
Checksum Gets the checksum data for a specified area.
Security Set Sets security information.
Security Get Gets security information.
Security
Security Release Release setting of prohibition of writing.
Reset Used to detect synchronization status of communication. Others
Baud Rate Set Sets baud rate when UART communication mode is selected.
The RL78/G13 returns a response for the command issued by the dedicated flash memory programmer or external
device. The response names sent from the RL78/G13 are listed below.
Table 25-8. Response Names
Response Name Function
ACK Acknowledges command/data.
NAK Acknowledges illegal command/data.
