RL78/G13 CHAPTER 22 SAFETY FUNCTIONS
R01UH0146EJ0100 Rev.1.00 907
Sep 22, 2011
22.3.2 CRC operation function (general-purpose CRC)
In order to guarantee safety during operation, the IEC61508 standard mandates the checking of data even while the
CPU is operating.
In the RL78/G13, a general CRC operation can be executed as a peripheral function while the CPU is operating. The
general CRC can be used for checking various data in addition to the code flash memory area. The data to be checked
can be specified by using software (a user-created program).
The general CRC operation can be executed in the main system clock operation mode as well as the subsystem clock
operation mode.
The CRC generator polynomial used is “X
16
+ X
12
+ X
5
+ 1” of CRC-16-CCITT. The data to be input is inverted in bit
order and then calculated to allow for LSB-first communication. For example, if the data 12345678H is sent from the LSB,
values are written to the CRCIN register in the order of 78H, 56H, 34H, and 12H, enabling a value of 08F6H to be
obtained from the CRCD register. This is the result obtained by executing a CRC operation on the bit rows shown below,
which consist of the data 12345678H inverted in bit order.

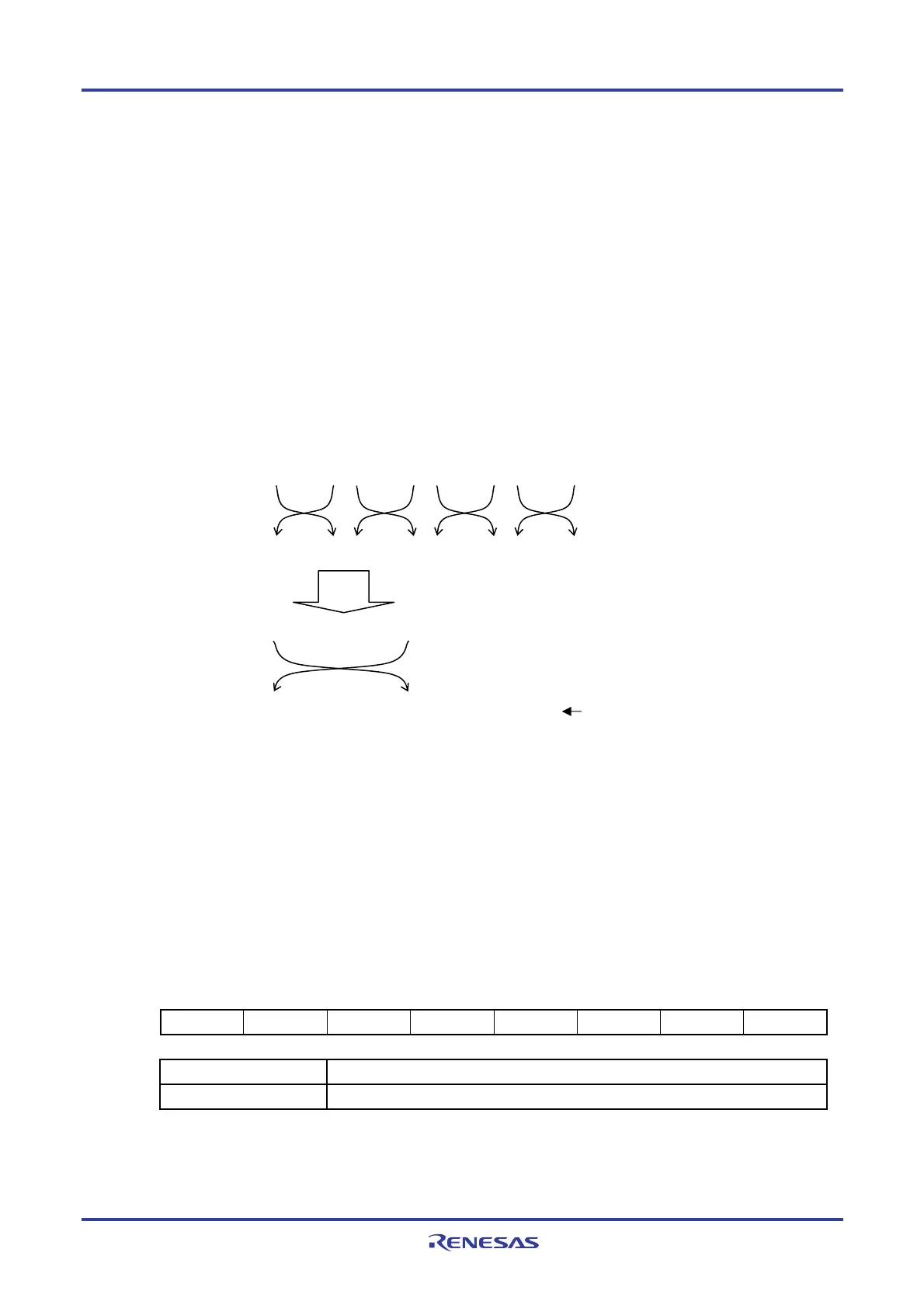

CRCIN setting data 78H 56H 34H 12H
Bit representation data 0111 1000 0101 0110 0011 0100 0001 0010
Bit reverse data 0001 1110 0110 1010 0010 1100 0100 1000
Result data 0110 1111 0001 0000
CRCD data 0000 1000 1111 0110 Obtained result
(08F6H)
<Control register>
(1) CRC input register (CRCIN)
CRCIN register is an 8-bit register that is used to set the CRC operation data of general-purpose CRC.
The possible setting range is 00H to FFH.
The CRCIN register can be set by an 8-bit memory manipulation instruction.
Reset signal generation clears this register to 00H.
Figure 22-4. Format of CRC Input Register (CRCIN)
Address: FFFACH After reset: 00H R/W
Symbol 7 6 5 4 3 2 1 0
CRCIN
Bits 7 to 0 Function
00H to FFH Data input.
Bit reverse
Bit reverse
Operation with polynomial
To Next Page
