RL78/G13 CHAPTER 4 PORT FUNCTIONS

R01UH0146EJ0100 Rev.1.00 242

Sep 22, 2011

For example, figures 4-57 to 4-63 show block diagrams of port 14 for 128-pin products when PIOR = 00H.

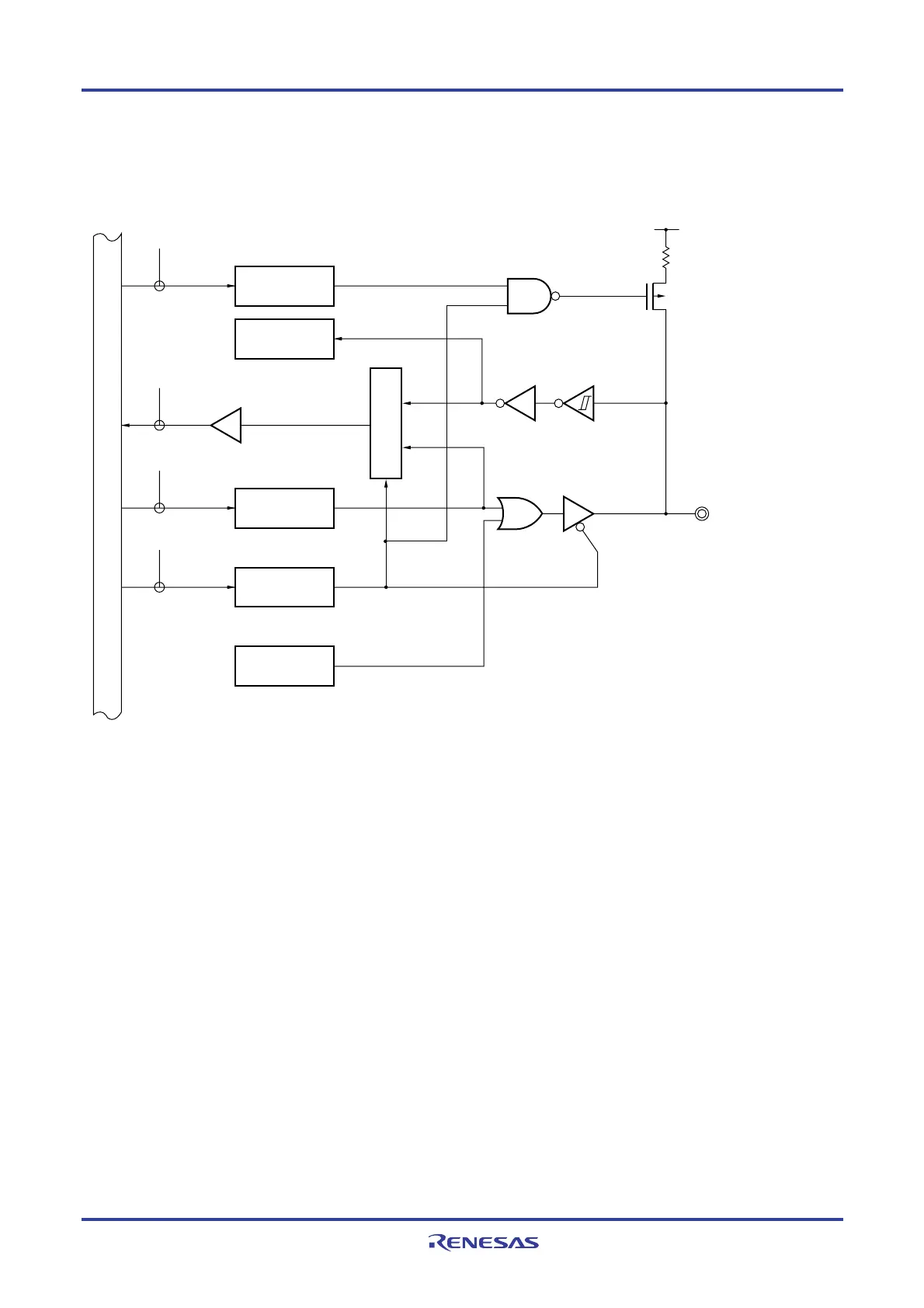

Figure 4-57. Block Diagram of P140 and P141

P140/PCLBUZ0/INTP6,

P141/PCLBUZ1/INTP7

PORT

PU140, PU141

PM140, PM141

P-ch

PU14

PM14

P14

Output latch

(P140, P141)

Selector

Alternate

function

Alternate

function

Internal bus

P14: Port register 14

PU14: Pull-up resistor option register 14

PM14: Port mode register 14

RD: Read signal

WR××: Write signal

<R>
