USB2.0/SD Slot Type A
SM 2-63 D037/D038/D040/D041
Installaion

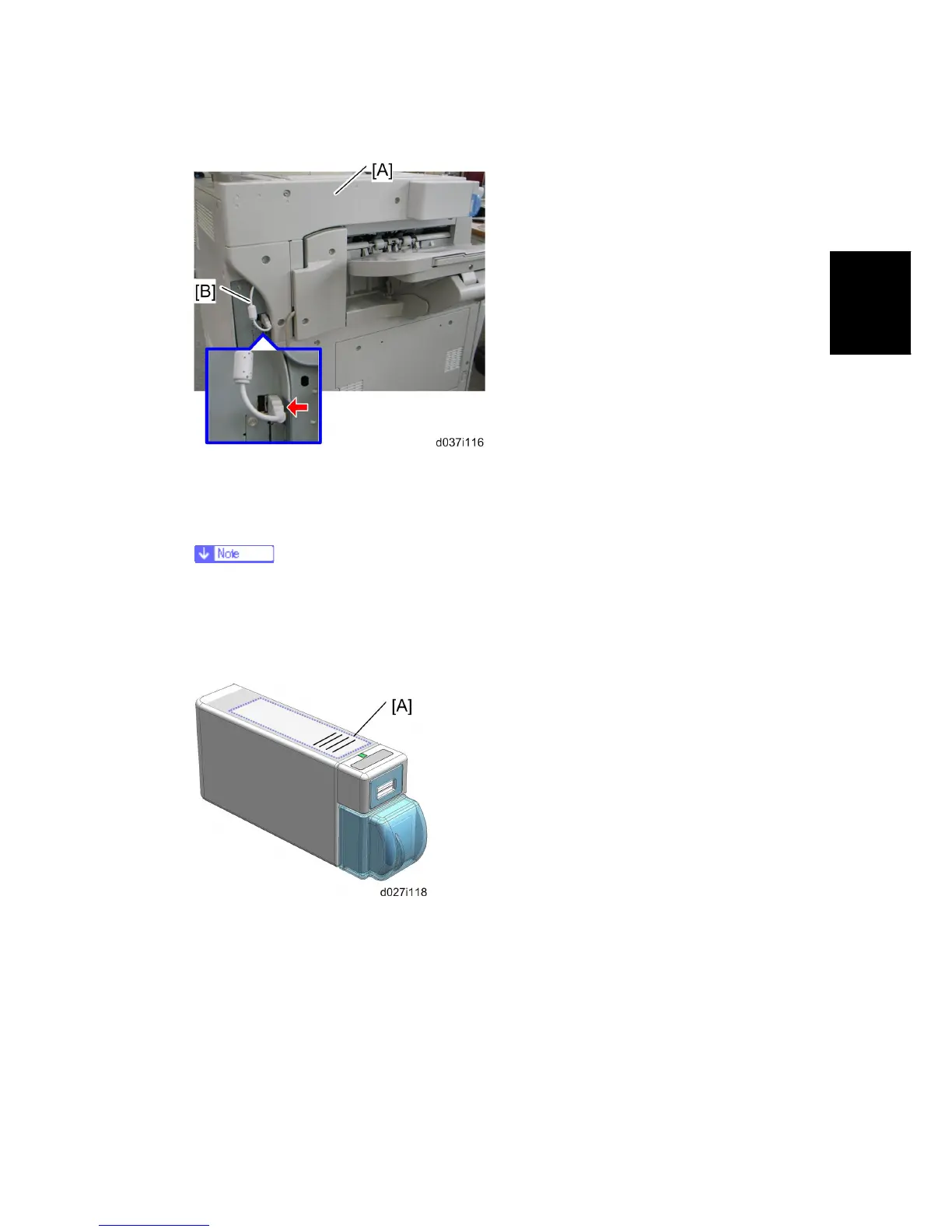

10. Attach the scanner left cover [A] to the mainframe, and then connect the USB cable [B]
to USB-A (this is the USB slot closest to the front side of the machine) as shown
above.
Make sure that the USB cable is inserted in USB-A (front side).
11. Plug in and turn on the mainframe.
12. Enter the SP mode, and then change the setting of (scanner) SP1013-001 from “0” to
“1”.
13. Attach the decal [A] to the USB2.0/SD Slot as shown above.
2.14.3 TESTING THE SD CARD/USB SLOT
1. Insert an SD card or USB memory device in the slot.
You can connect only one removable memory device at a time.
1. Close the media slot cover.
If you leave the cover open, static electricity conducted through an inserted SD card could
cause the machine to malfunction.
