Document Feed Components
SM 3 D366
ARDF DF3030
D366

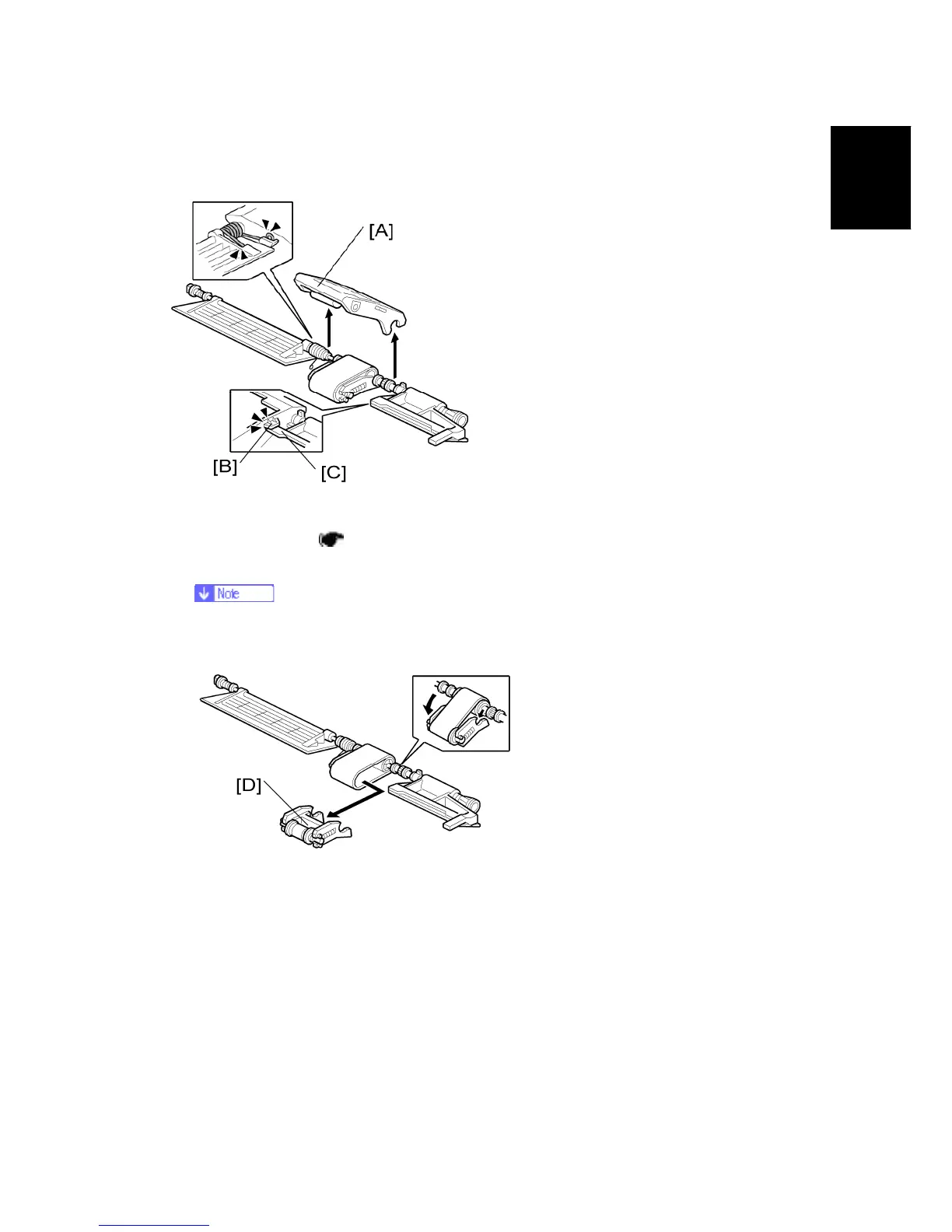

1.2.3 FEED BELT
1. Open the left cover.
2. Original feed unit (
"Original Feed Unit")
3. Feed belt cover [A] (spring x 1)
 When reassembling the feed belt cover, make sure that the projection [B] of
the feed belt cover is on the guide plate rear [C].
4. Belt tension unit [D]
