Drive Components
D331 4
SM

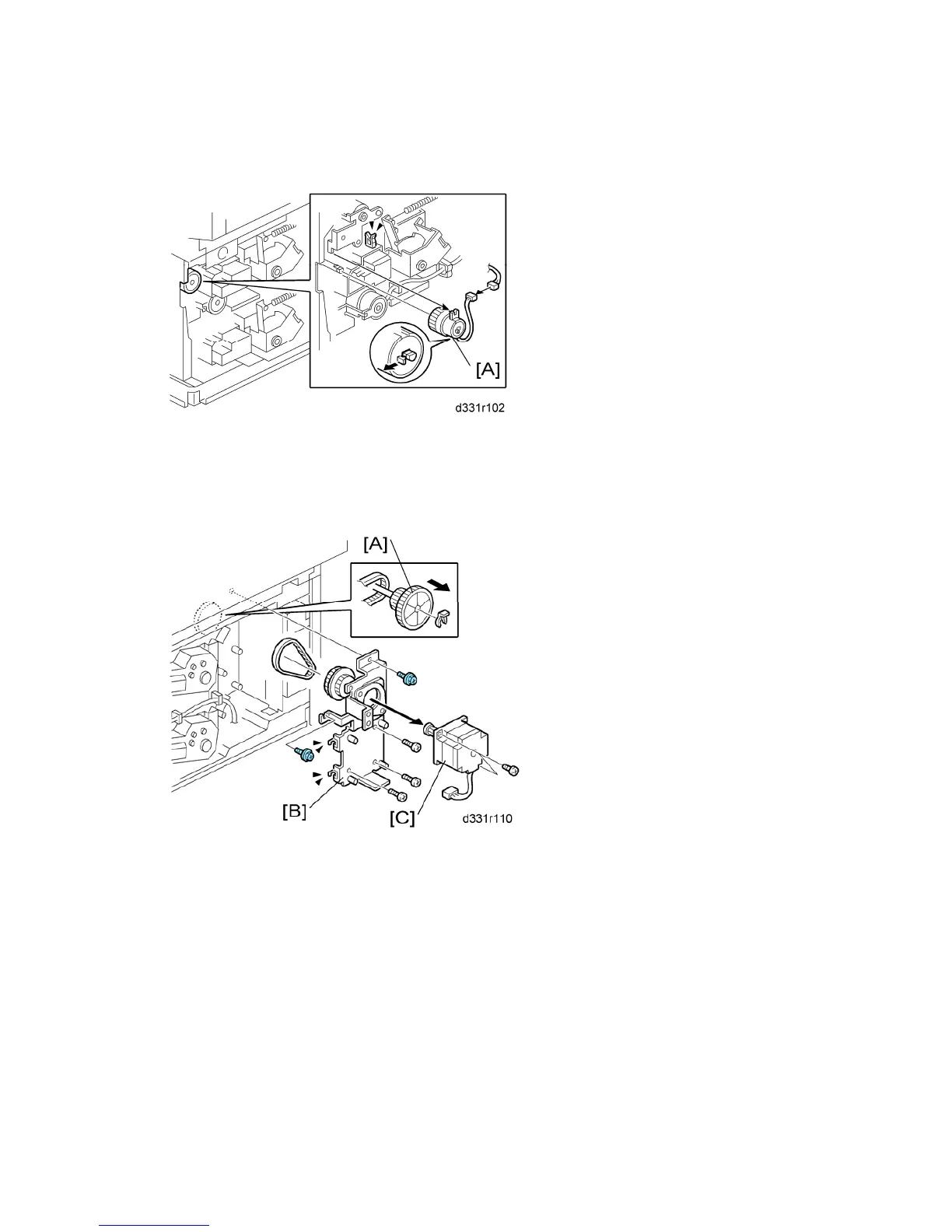

1.2.3 RELAY
CLUTCH
1.
Rear cover (
"Covers")
2.
Relay clutch [A] (
=
x 1,
x 1)
1.2.4
PAPER FEED MOTOR
1.
Rear cover (
"Covers")
2.
T
ray main board (
"Tray Main Board")
3.
Gear [A] (
x 1)
4.
Paper feed motor bracket [B] (
x 5)
5.
Paper feed motor [C] (
x 2)
