Electrical Components

D366 6 SM

3. Original trailing edge sensor [B] ( x 1)

4. Original length sensors [C] (

x 1 each)

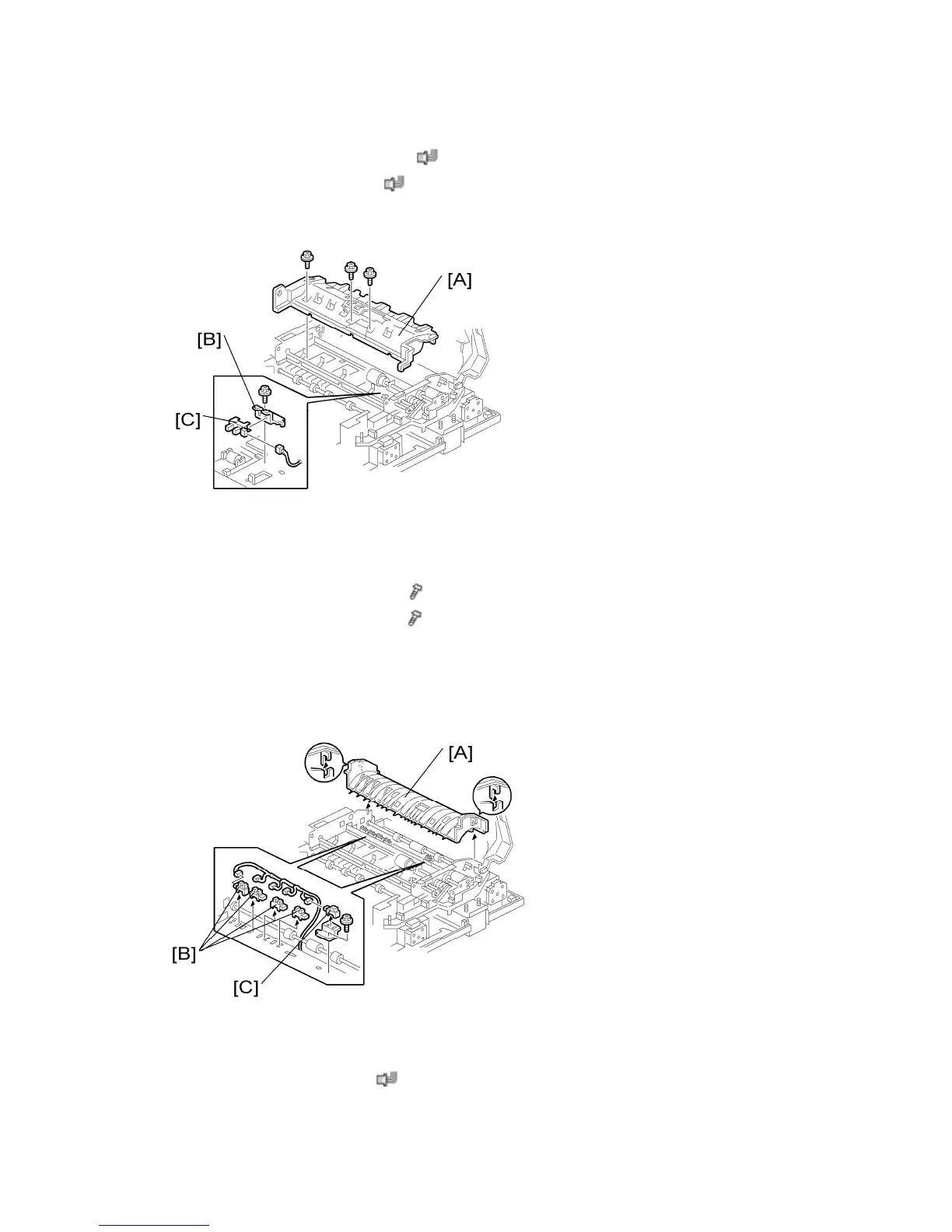

1.3.3 ORIGINAL SET SENSOR

1. Open the left cover.

2. Original feed unit (see the "Original Feed Unit")

3. Original Tray (see the "Original Tray")

4. Original feed-in guide plate [A] (

x 3).

5. Original set sensor bracket [B] (

x 1)

6. Original set sensor [C]

1.3.4 ORIGINAL SIZE SENSORS AND SKEW CORRECTION

SENSOR

1. Original feed-in guide plate (see "Original Set Sensor")

2. Original turn guide plate [A] (hook x 1).

3. Original width sensors [B] (

x 1 each) and skew correction sensor [C] with bracket
