Image Adjustment
SM 4-3 D037/D038/D040/D041
Replacement
& Adjustment
4.3 IMAGE ADJUSTMENT
4.3.1 SCANNING
Check the printing registration/side-to-side adjustment and the blank margin adjustment
before you do the following scanner adjustments.
 Use S-2-1 test chart to do the following adjustments.

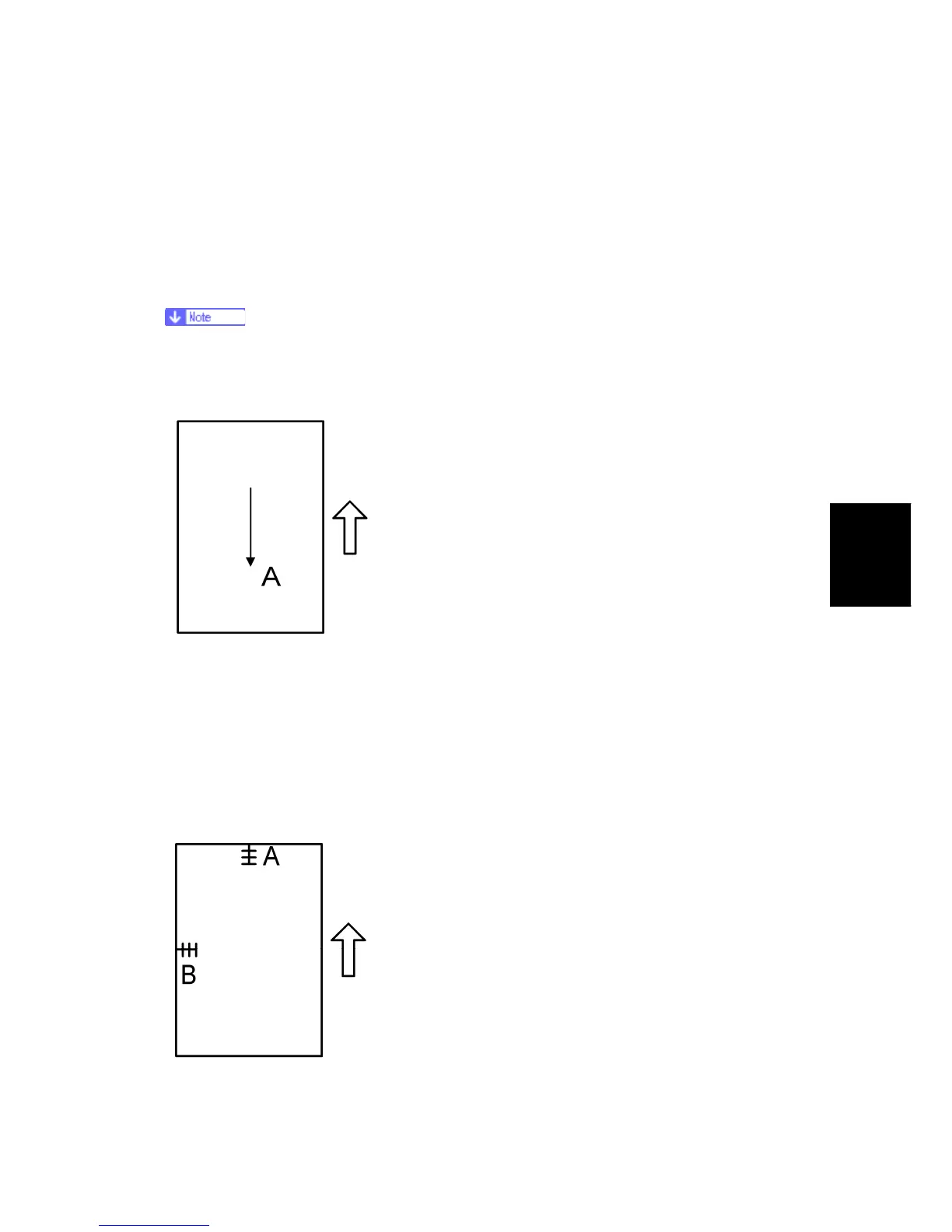

Scanner sub-scan magnification
A: Sub-scan magnification
1. Put the test chart on the exposure glass. Then make a copy from one of the feed
stations.
2. Check the magnification ratio. Adjust with SP4-008 if necessary.
Standard: ±1.0%.
Scanner leading edge and side-to-side registration
A: Leading Edge Registration
To Next Page
