4.13 PAPER EXIT

4.13.1 JUNCTION GATE SOLENOID FAN

1. Right upper cover ( Section: Right Upper Cover)

2. Right rear cover

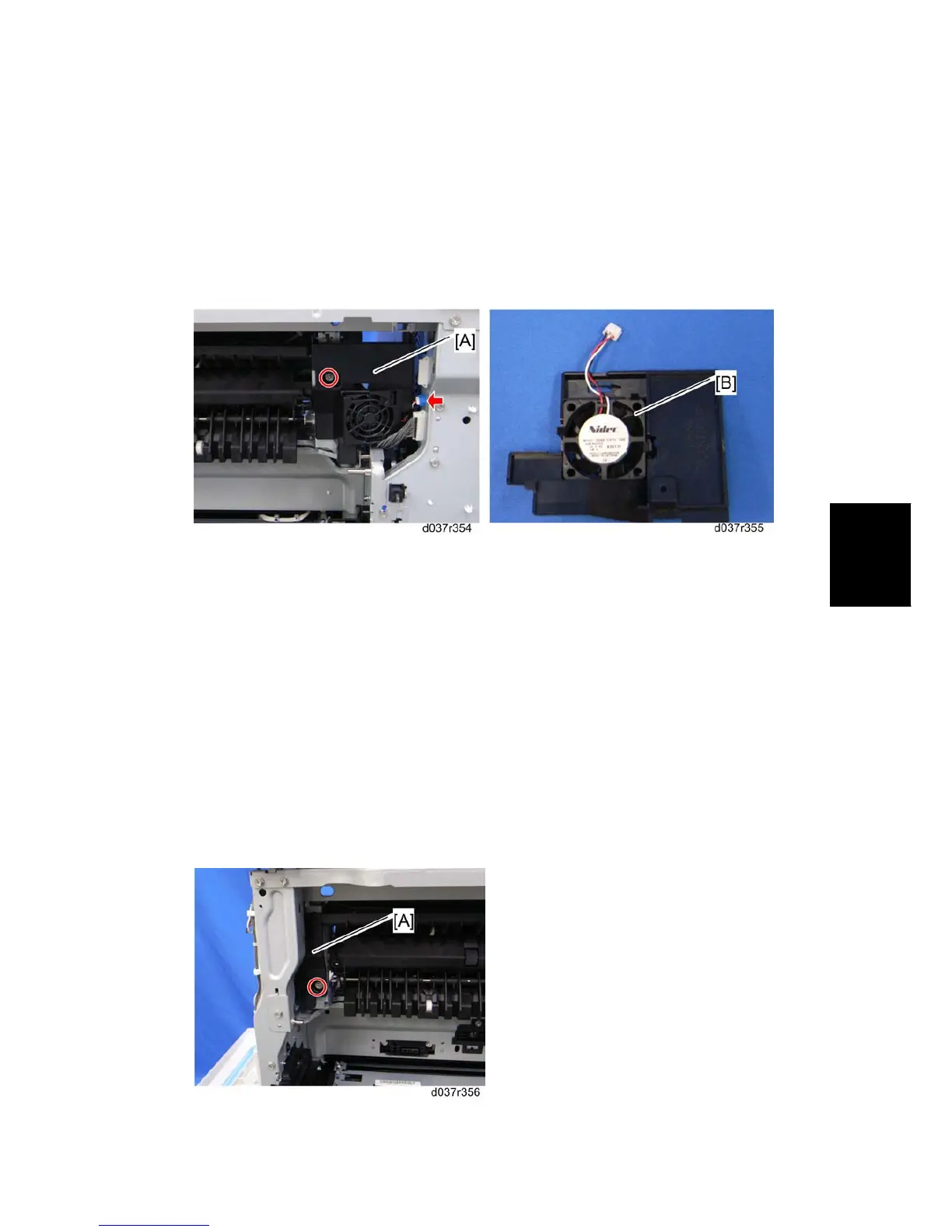

3. Fan base [A] ( x 1,  x 1)

4. Junction gate solenoid fan [B] (hooks)

When installing the junction gate solenoid fan

Make sure that the junction gate solenoid fan is installed with its decal facing to the left

side.

4.13.2 PAPER EXIT UNIT

1. Fusing Unit ( Section: Fusing Unit)

2. Front right cover ( Section: Front Right Cover)

3. Junction gate solenoid fan base ( Section: Junction Gate Solenoid Fan)

4. Paper exit cover ( Section: Paper Exit Cover)

5. Inner Tray ( Section: Inner Tray)
