Electrical Component
s
D427 2
SM
2.

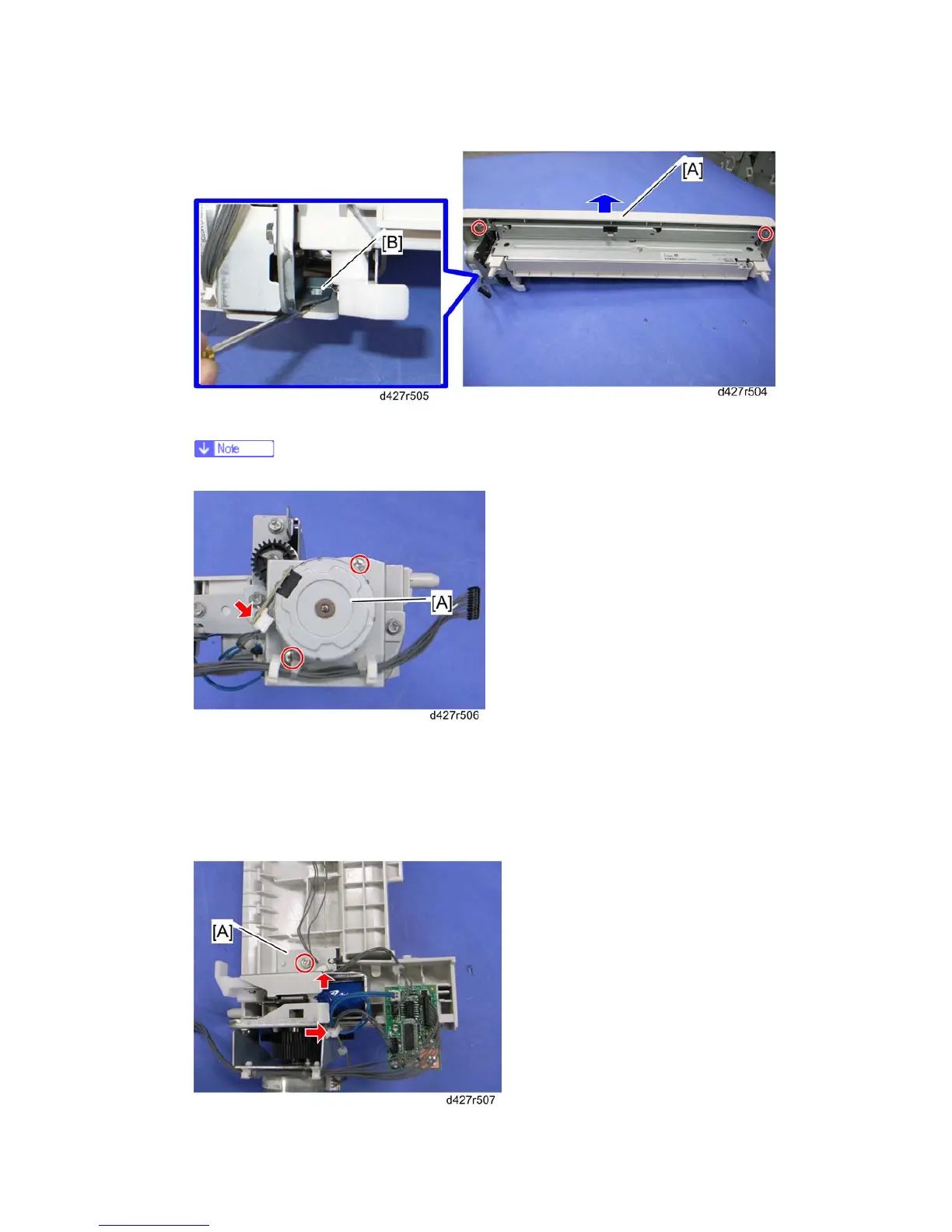

Side tray upper cover [A] (
x 2, tab [B])
Release the tab [B] with a flat-head screwdriver
.
3.
Side tray motor [A] (
x 2,
x 1)
1.1.3
SIDE TRAY GATE SOLENOID
1.
Side tray paper exit unit
2.
Side tray upper cover (
Side T
ray Motor)
989
991
