D037/D038/D040/D041 4-52 SM

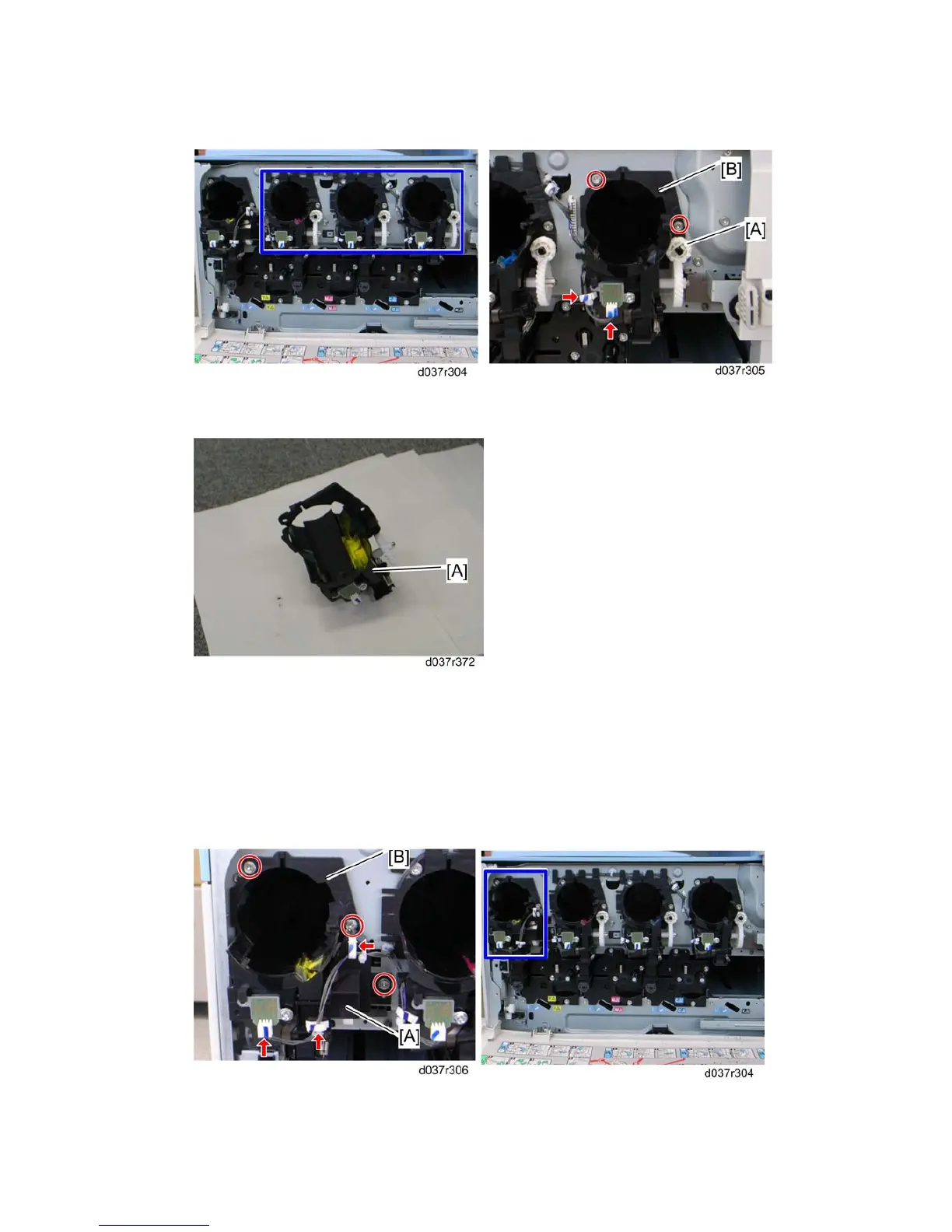

5. Toner supply drive gear [A] (hook x 1)

6. Toner hopper unit: K, C, M [B] ( x 2, = x 1 for K and M; 2 for C ,  x 1 each)

7. Place the toner hopper unit [A] on sheets of paper.

Toner hopper unit: Y

1. Open the front door.

2. PCDU toner collection bottle  Section: PCDU Toner Collection Bottle)

3. Inner cover ( Section: Inner Cover)

4. PCDU ( Section: PCDU (Photo Conductor and Development Unit))

5. Gear cover [A] ( x 2, = x 2)
