Paper Exit
D037/D038/D040/D041 4-1
10
SM
6.
Front harness cover [A] (
x 1)
7.

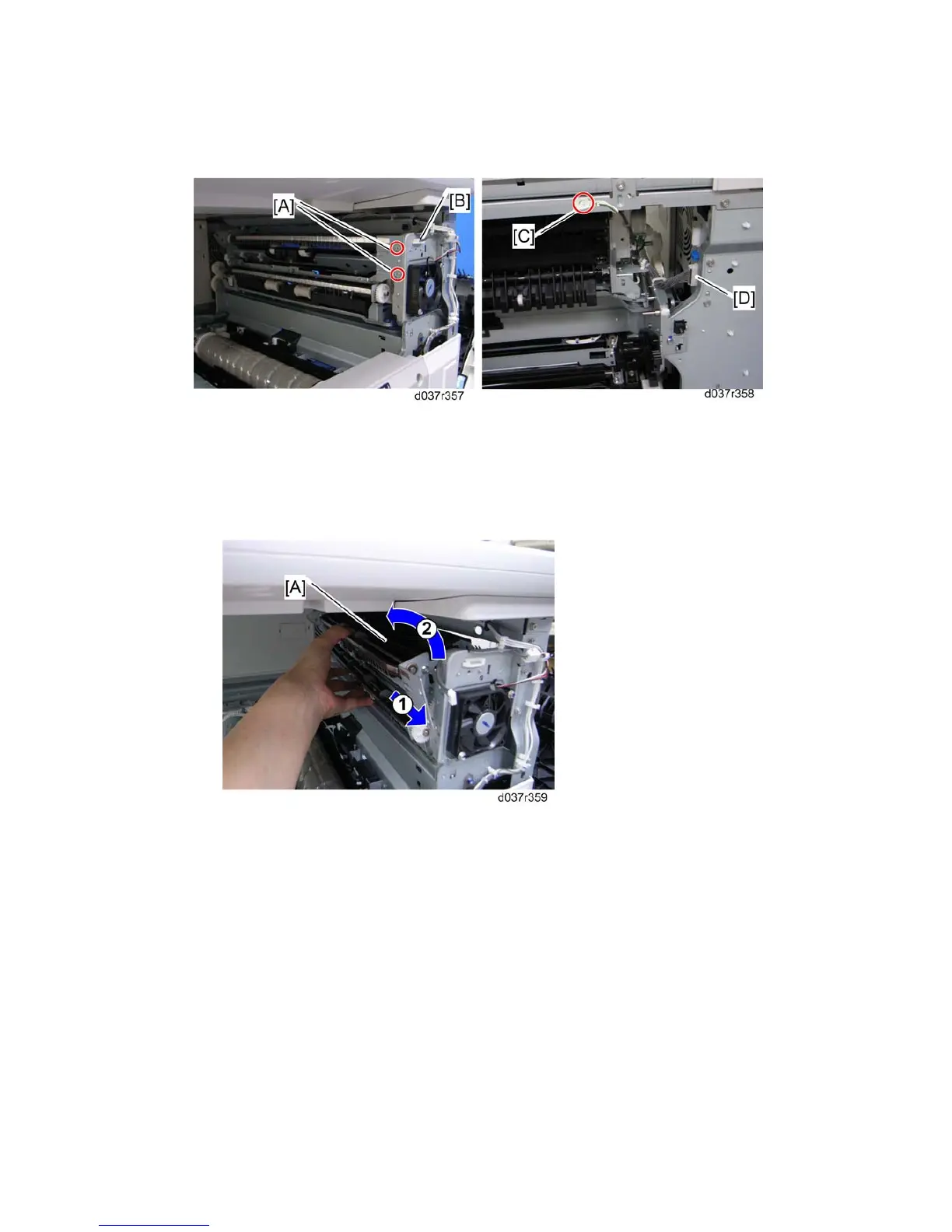

Remove or disconnect the following:
T
wo screws [A] at the front side
Front harness [B]
Ground cable [C] (
x 1)
Rear harness [D]
8.
Paper exit unit [A]
4.13.3 FUSING
EXIT
1.
Paper exit unit (
Section: Paper Exit Unit)
279
281
