Electrical Components
D037/D038/D040/D041 4-132 SM

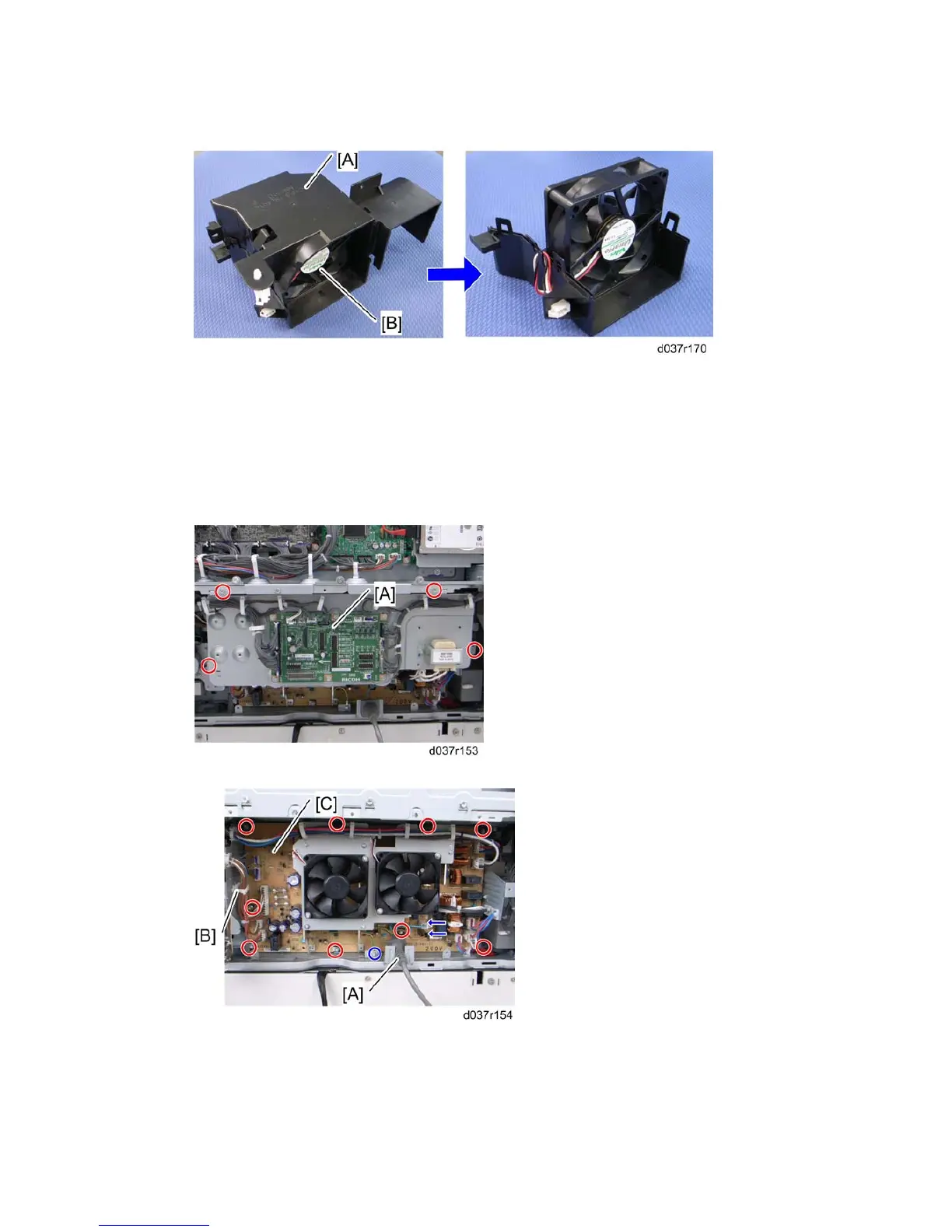

3. Remove the bracket [A] from the fusing rear fan [B] (hook x 6).
When installing the fusing rear fan
Make sure that the fusing rear fan is installed with its decal facing to the rear side.
4.15.8 PSU
1. Rear cover ( Section: Rear Cover)
2. DRB with the bracket [A] ( x 4, x all, = x all)
3. Power cord [A] (Blue: ground screw x 1, x 2)
4. Remove the clamp [B] from the bracket.
5. PSU board [C] ( x 9, = x All, x All)
