Paper Feed
SM 4-105
D037/D038/D040/D041
Repla
cement
& Adjustment
4.

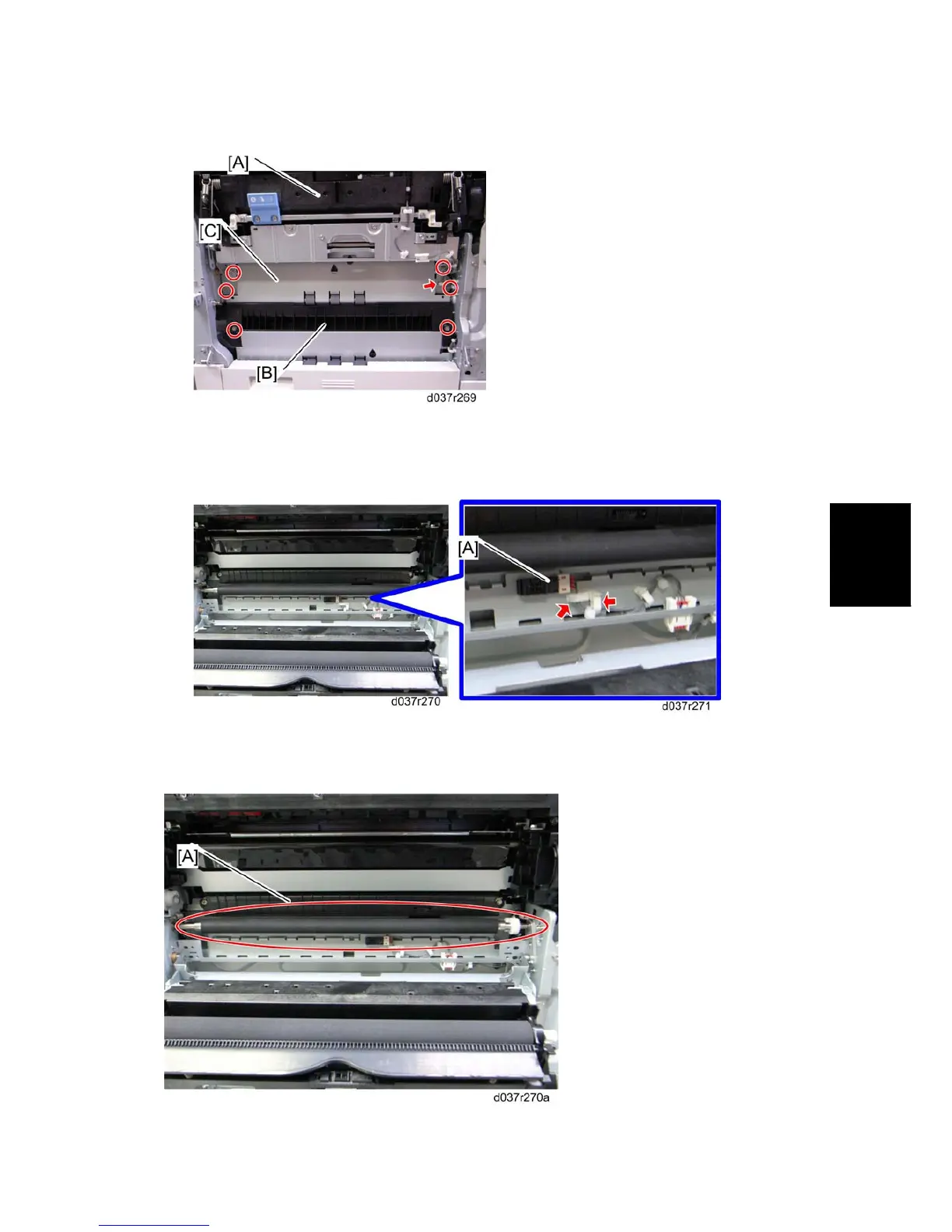

Close the paper transfer unit [A].
5.
Relay guide plate [B] (
x 2)
6.
Upper vertical transport guide [C] (
=
x 1,
x 2)
7.
Registration sensor [A] (
=
x 2, hooks,
x 1)
Cleaning the registration roller
274
276
