Duplex Unit
D037/D038/D040/D041 4-1
18
SM
1.

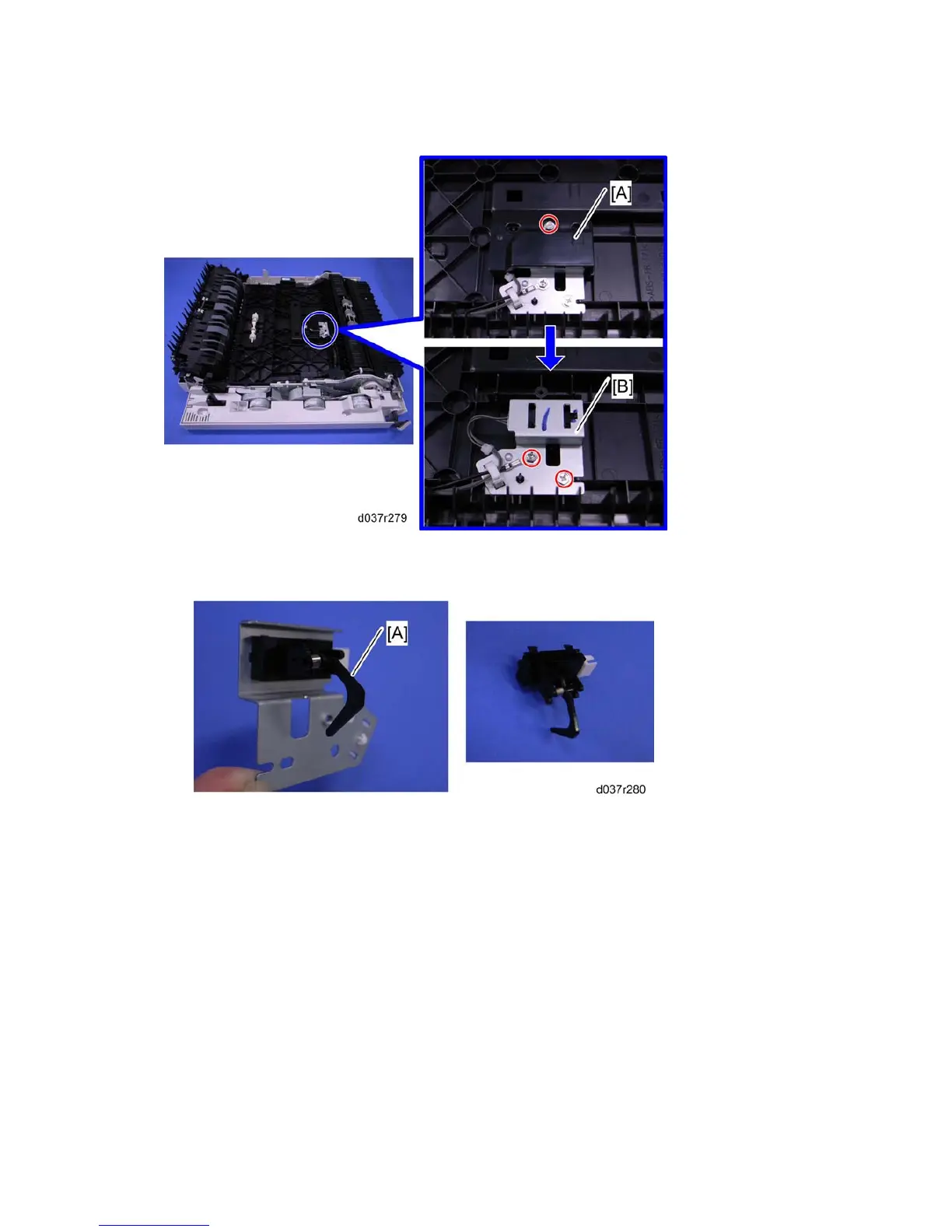

Duplex exit sensor assembly cover [A] (
x 1)
2.
Duplex exit sensor assembly [B] (
x 1, ground screw x 1,
=
x 1,
x 1)
3.
Duplex exit sensor [A] (hook)
4.14.4 DUPLEX
ENTRANCE
MOTOR
1.
Duplex unit (
Section: Duplex Unit)
2.
Duplex inner cover (
Section: Duplex Entrance Sensor)
287
289
