Tray Heaters (Optional Unit)
SM 2-83 D037/D038/D040/D041
Installaion
Tray Heater for D331

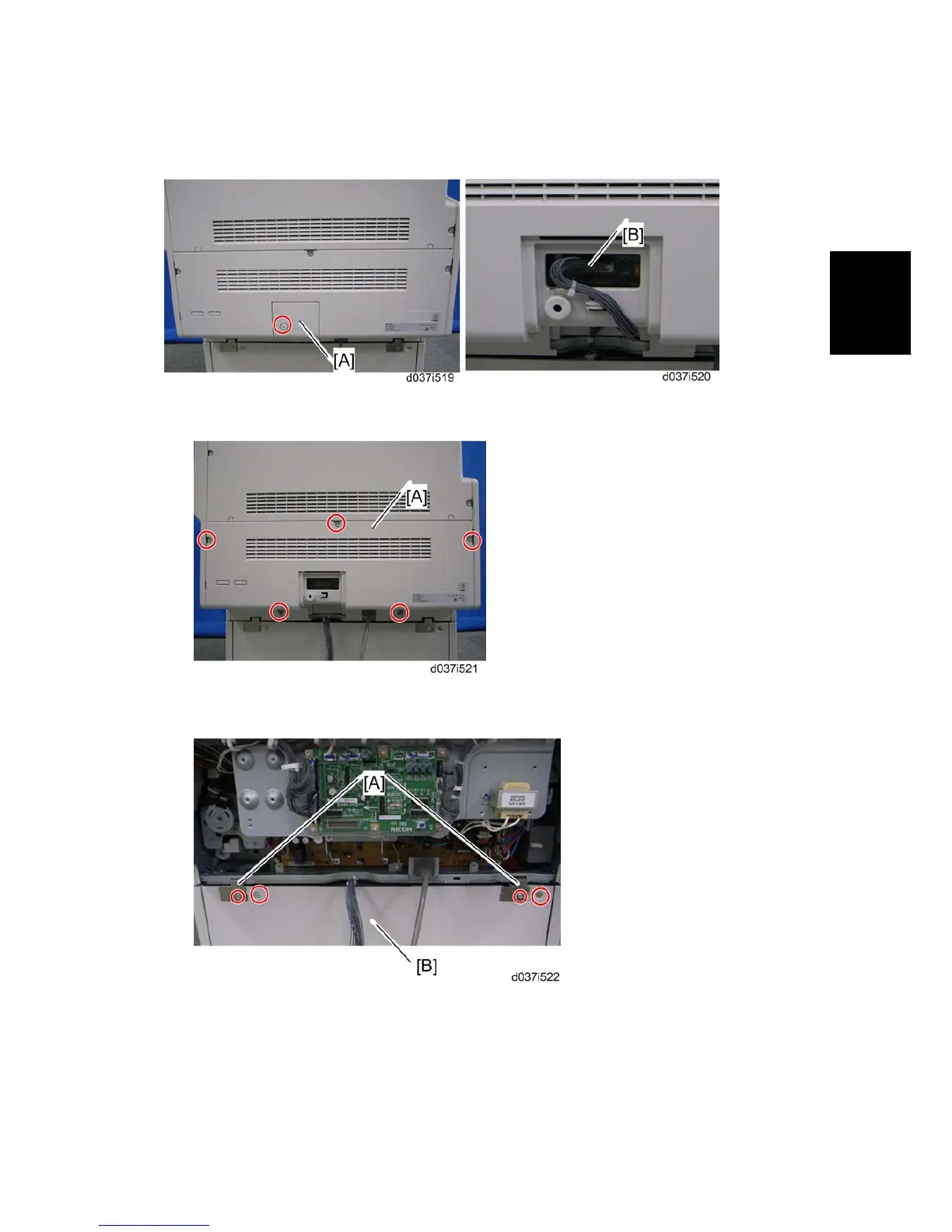

1. Remove the rear connector cover [A] (rivet screw x 1) of the mainframe.
2. Disconnect the harness [B].
3. Remove the rear lower cover [A] of the mainframe ( x 5).
4. Pull out all the tray cassettes of the paper feed unit.
5. Remove the securing brackets [A] ( x 1 each), and then rear cover [B] of the paper
feed unit ( x 2).
