Platen Cover Inst
allation (G329)
SM 2-33
D037/D038/D040/D041
Inst
allaion
2.8

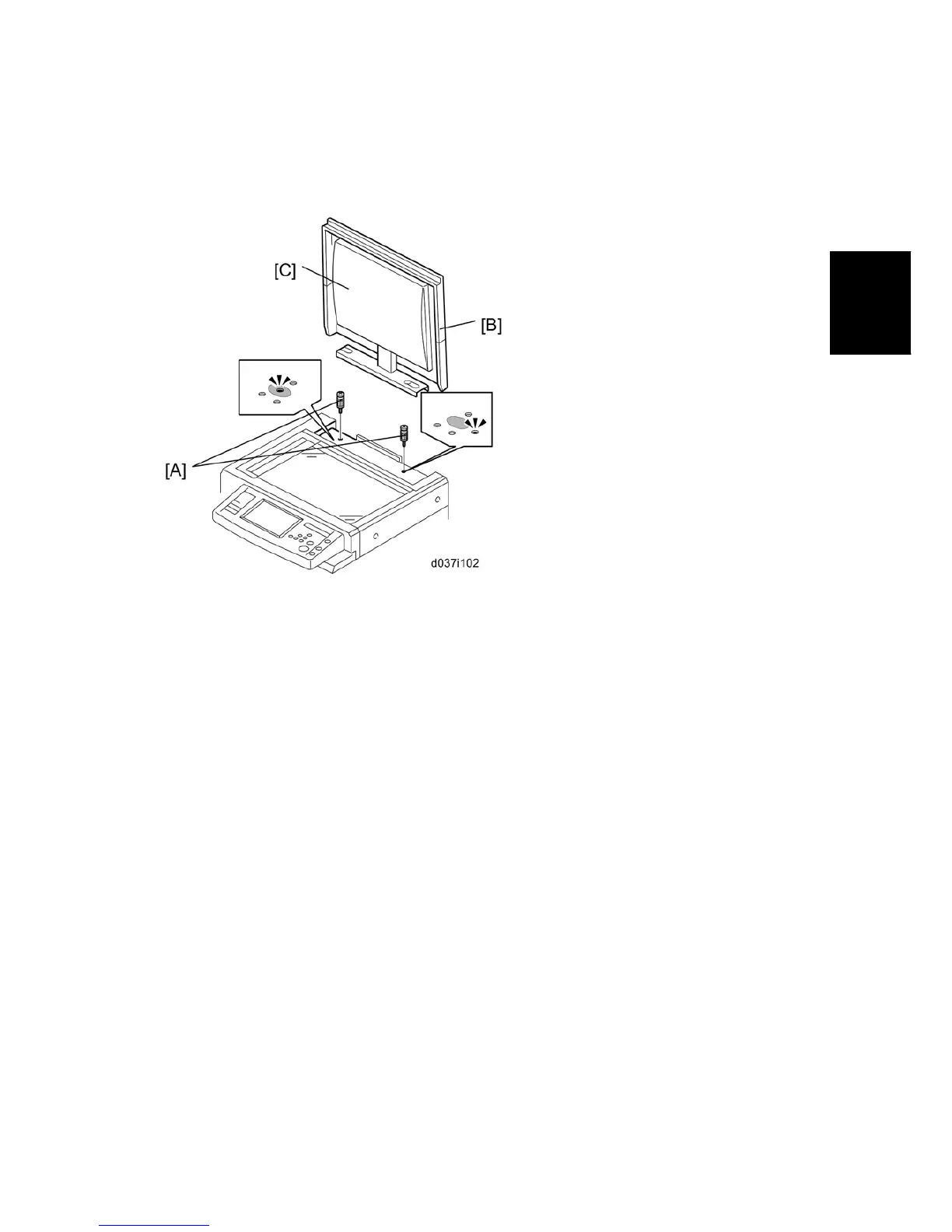

PLATEN COVER INSTALLATION (G329)
1.
Install the stud screws [A] (

x 2) on the top cover as shown.
2.
Position the platen cover bracket [B] on
the heads of the stud
screws, and slide the
platen cover [C] to the left.
82
84
