Paper Transfer
SM 4-69 D037/D038/D040/D041
Replacement
& Adjustment

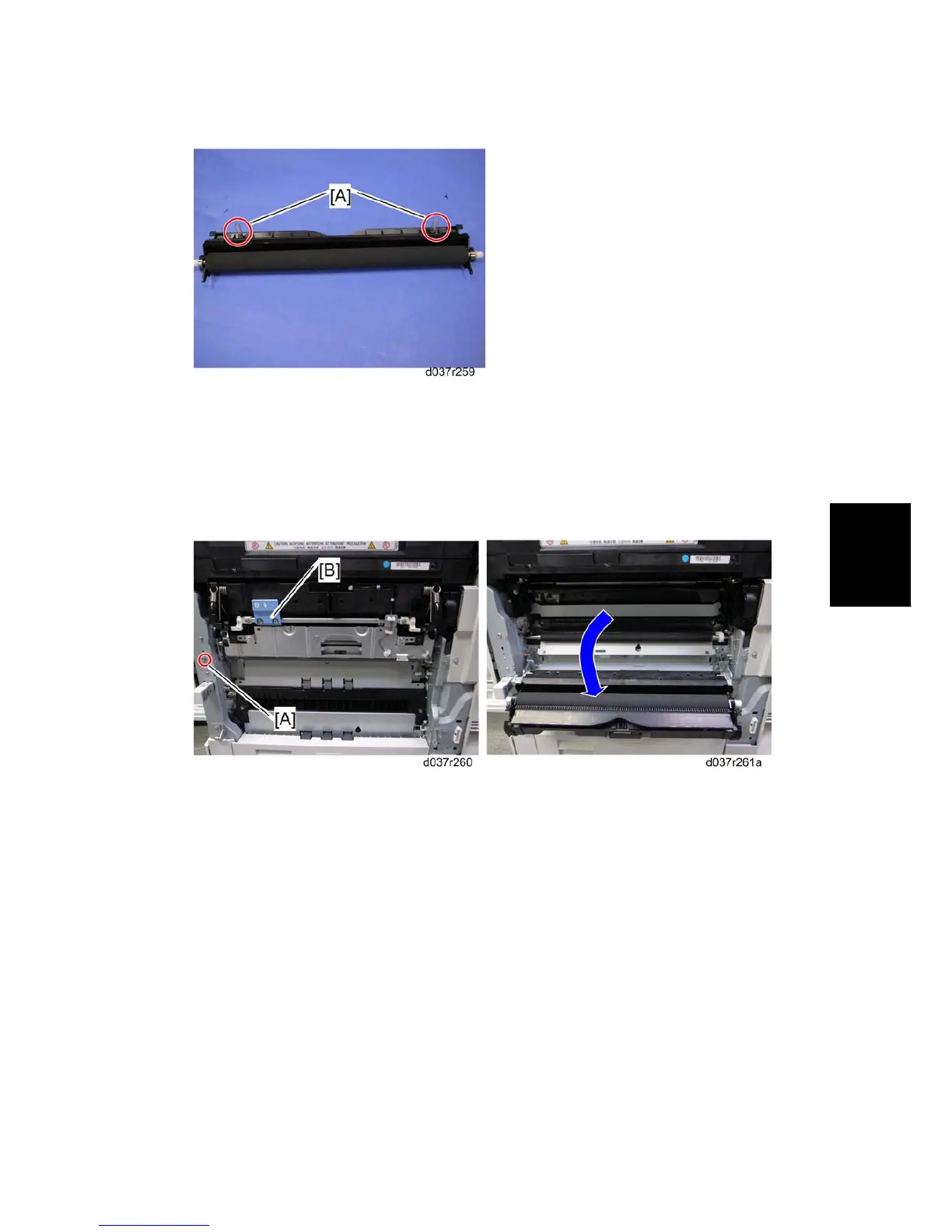

4. Remove the two springs [A].
 Keep these two springs from the old PTR unit and install them in the new PTR
unit.
4.9.2 OPENING THE PAPER TRANSFER UNIT
1. Duplex unit ( Section: Duplex Unit)
2. Hinge bracket [A] ( x 1)
3. Open the paper transfer unit [B].
4.9.3 ID SENSOR BOARD
1. Fusing unit ( Section: Fusing Unit)
2. Duplex unit ( Section: Duplex Unit)
