Ricoh D037 User Manual

Duplex Unit
SM 4-119 D037/D038/D040/D041
Replacement
& Adjustment

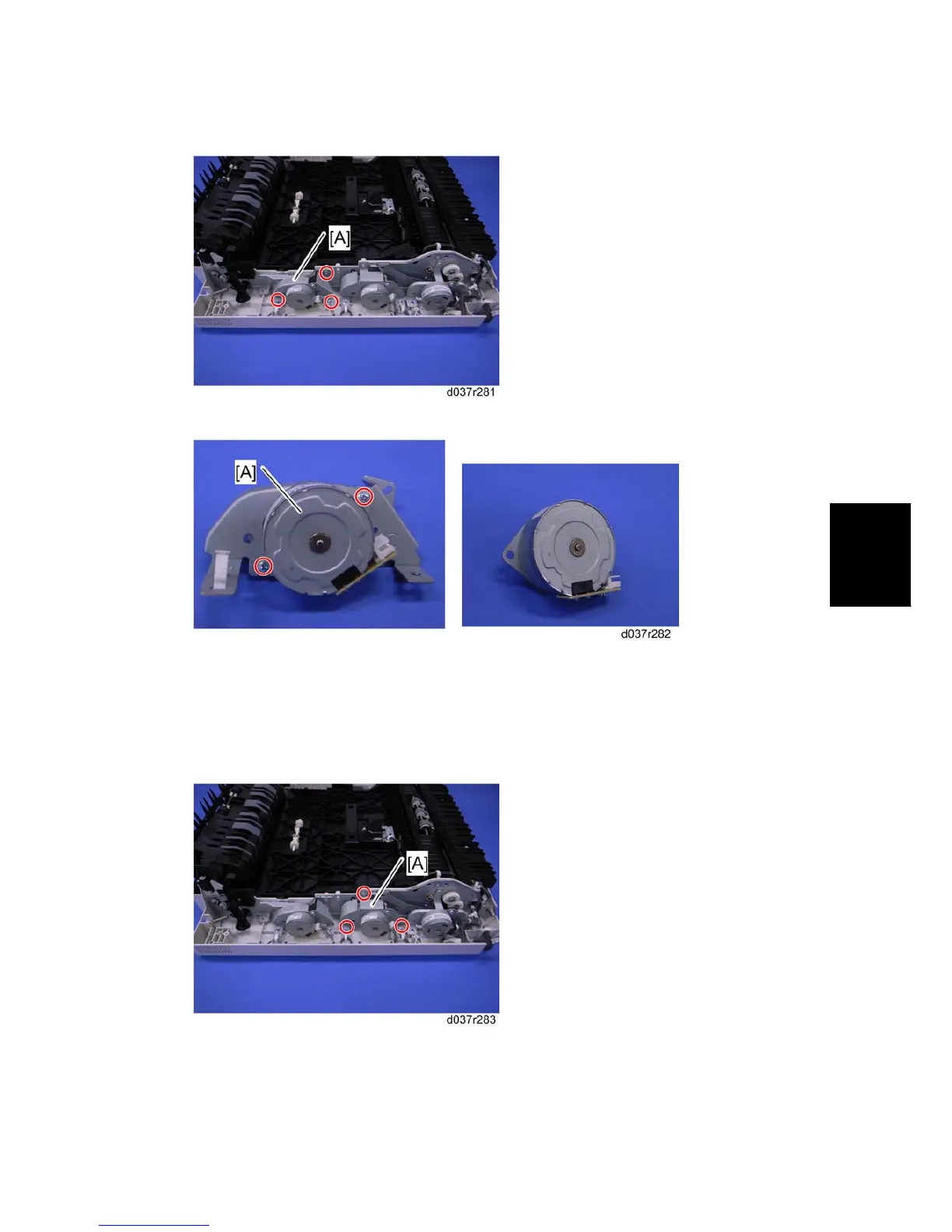

3. Duplex entrance motor with the bracket [A] ( x 3, = x1,  x 1)
4. Separate the duplex entrance motor [A] from the bracket ( x 2)
4.14.5 DUPLEX EXIT MOTOR
1. Duplex unit ( Section: Duplex Unit)
2. Duplex inner cover ( Section: Duplex Entrance Sensor)
3. Duplex exit motor with the bracket [A] ( x 3, = x 2,  x 1)

Ricoh D037 Specifications

General

Resolution	600 x 600 dpi
Duplex Printing	Yes
Warm-up Time	20 seconds
Model Name	D037
Category	Copier
Copy Speed	37 ppm
