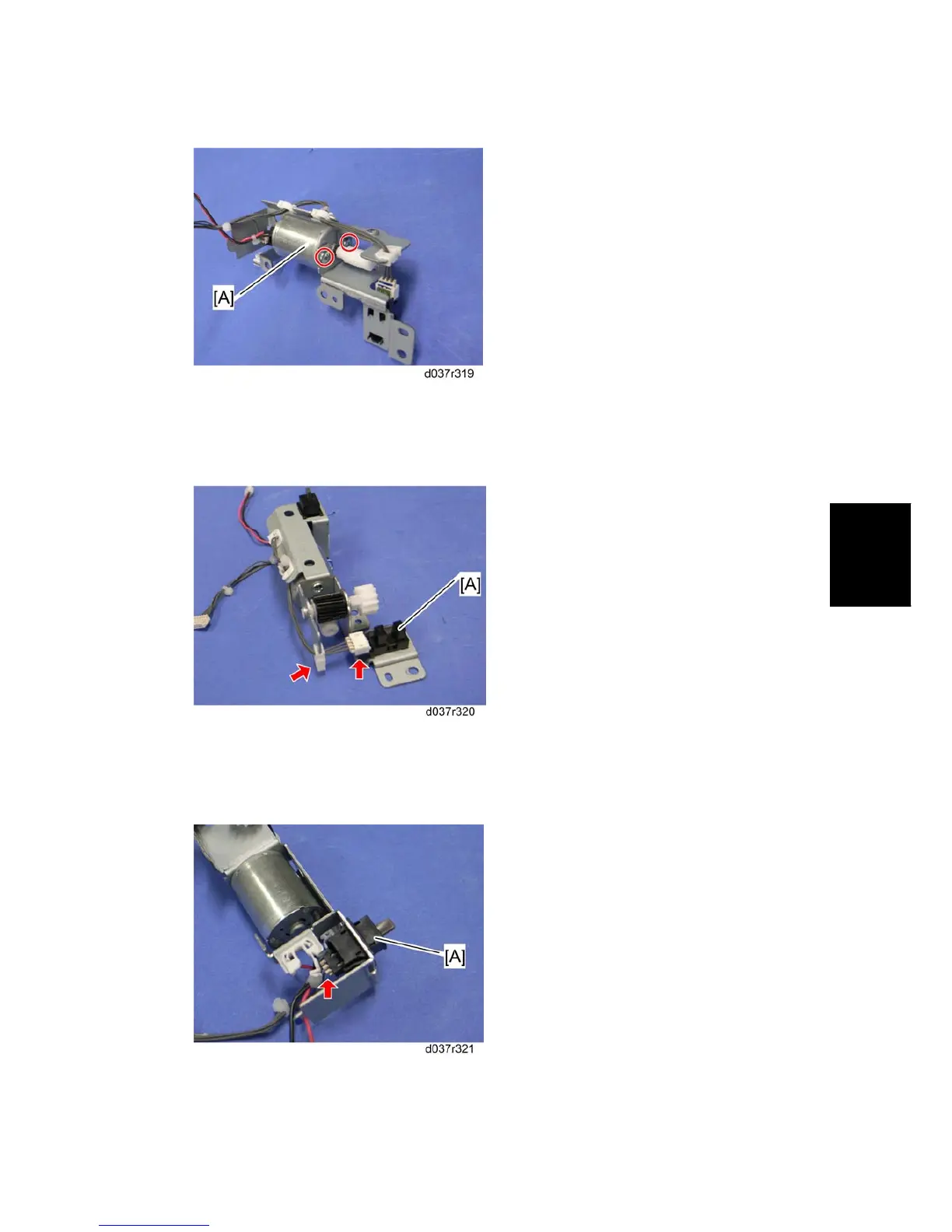

8. Toner collection motor [A] ( x 2)

4.7.6 PCDU TONER COLLECTION BOTTLE FULL SENSOR

1. Toner collection motor assembly ( Section: Toner Collection Motor)

2. PCDU toner collection bottle full sensor [A] (= x 1,  x 1, hooks)

4.7.7 PCDU TONER COLLECTION BOTTLE SET SWITCH

1. Toner collection motor assembly ( Section: Toner Collection Motor)

2. PCDU toner collection bottle set switch [A] (hooks,  x 1)
