Drive Components
SM 3 D331
Paper Tray
Unit PB3030
D331
1.2 DRIVE COMPONENTS
Turn off the main power switch and unplug the machine before beginning any of
the procedures in this section.

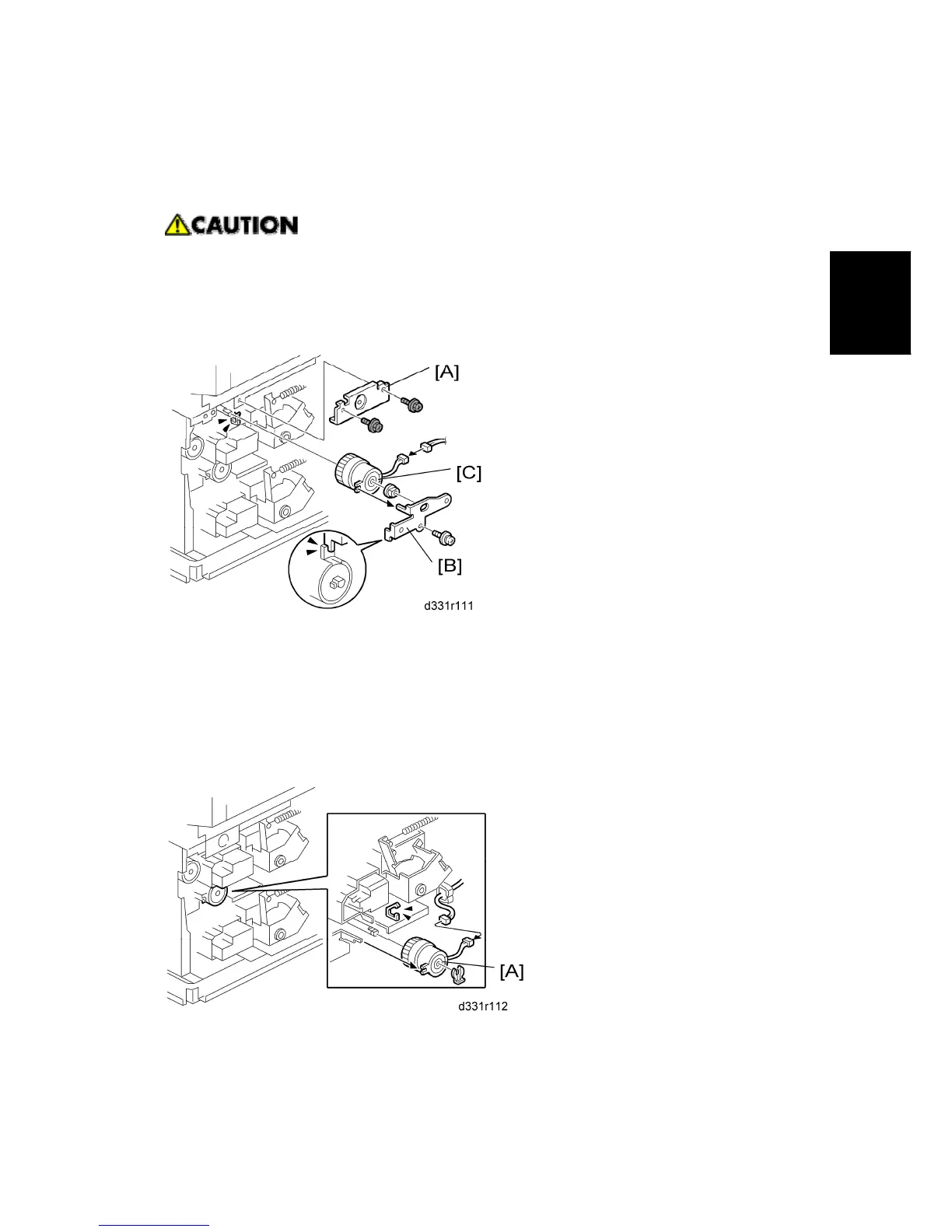

1.2.1 UPPER FEED CLUTCH
1. Rear cover ( "Covers")
2. Bracket [A] ( x 2)
3. Hold bracket [B] ( x 1, bushing x 1)
4. Upper feed clutch [C] ( x 1)
1.2.2 LOWER FEED CLUTCH
1. Rear cover ( "Covers")
2. Lower feed clutch [A] ( x 1, = x 1, x 1)
