Image Creation
D037/D038/D040/D041 4-58
SM

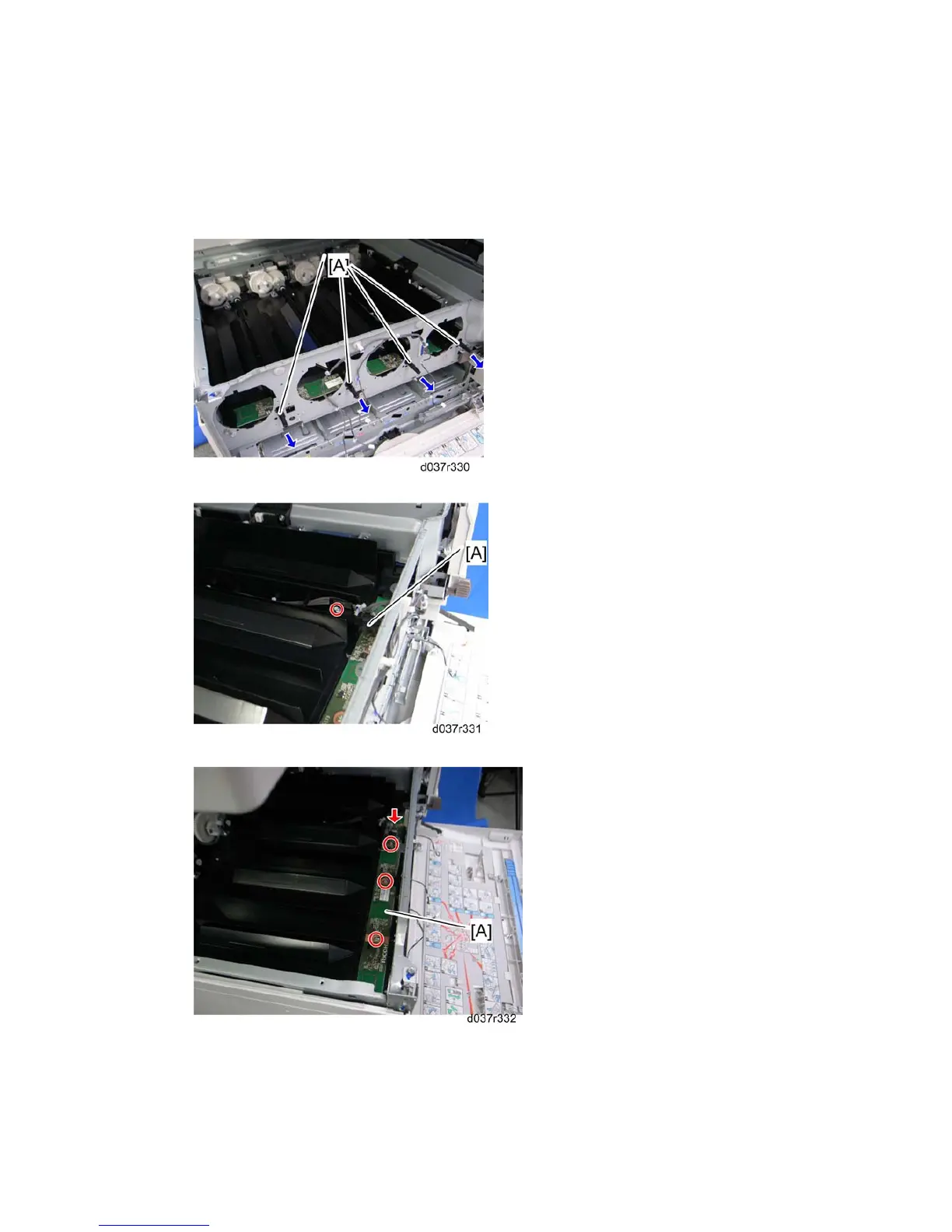

4.7.8 RFID
BOARD
1.
All toner hopper units (
Section:
T
oner Hopper Unit)
2.
Inner tray (
Section: Inner T
ray)
3.
T
oner supply drive shafts [A]
4.
Harness cover [A] (
x 1)
5.
RFID board [A] (
x 3,
=
x 1)
