Covers and Roller
SM 1 D331
Paper Tray
Unit PB3030
D331
1. REPLACEMENT AND ADJUSTMENT
1.1 COVERS AND ROLLER
 Turn off the main power switch and unplug the machine before beginning any of
the procedures in this section.

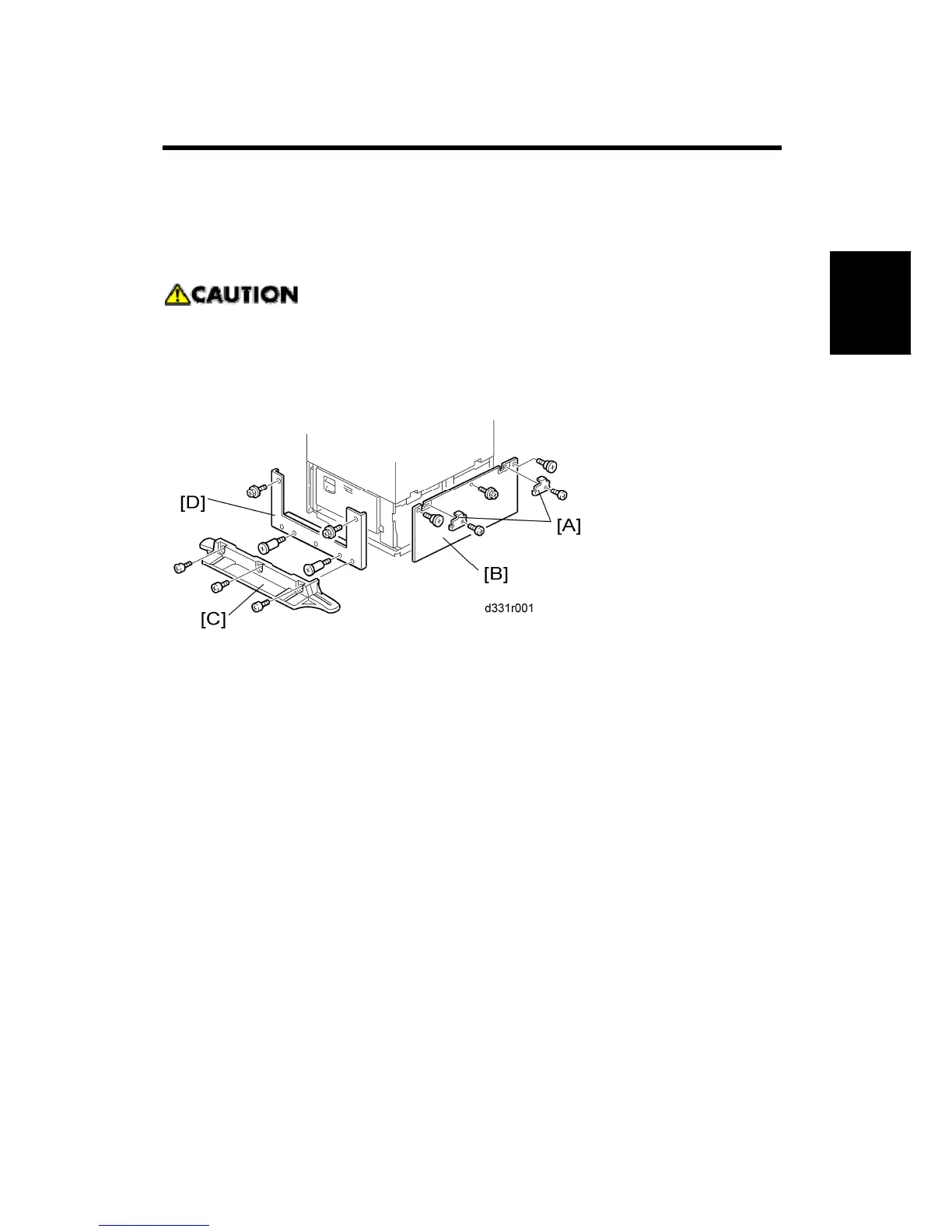

1.1.1 COVERS
Rear Cover
1. Hold brackets [A] ( x 1 each)
2. Rear cover [B] ( x 3)
Right Cover
1. Right side stopper [C] ( x 3)
2. Right cover [D] ( x , knob screw x 2)
