Electrical Components
SM 7 D331
Paper Tray
Unit PB3030
D331

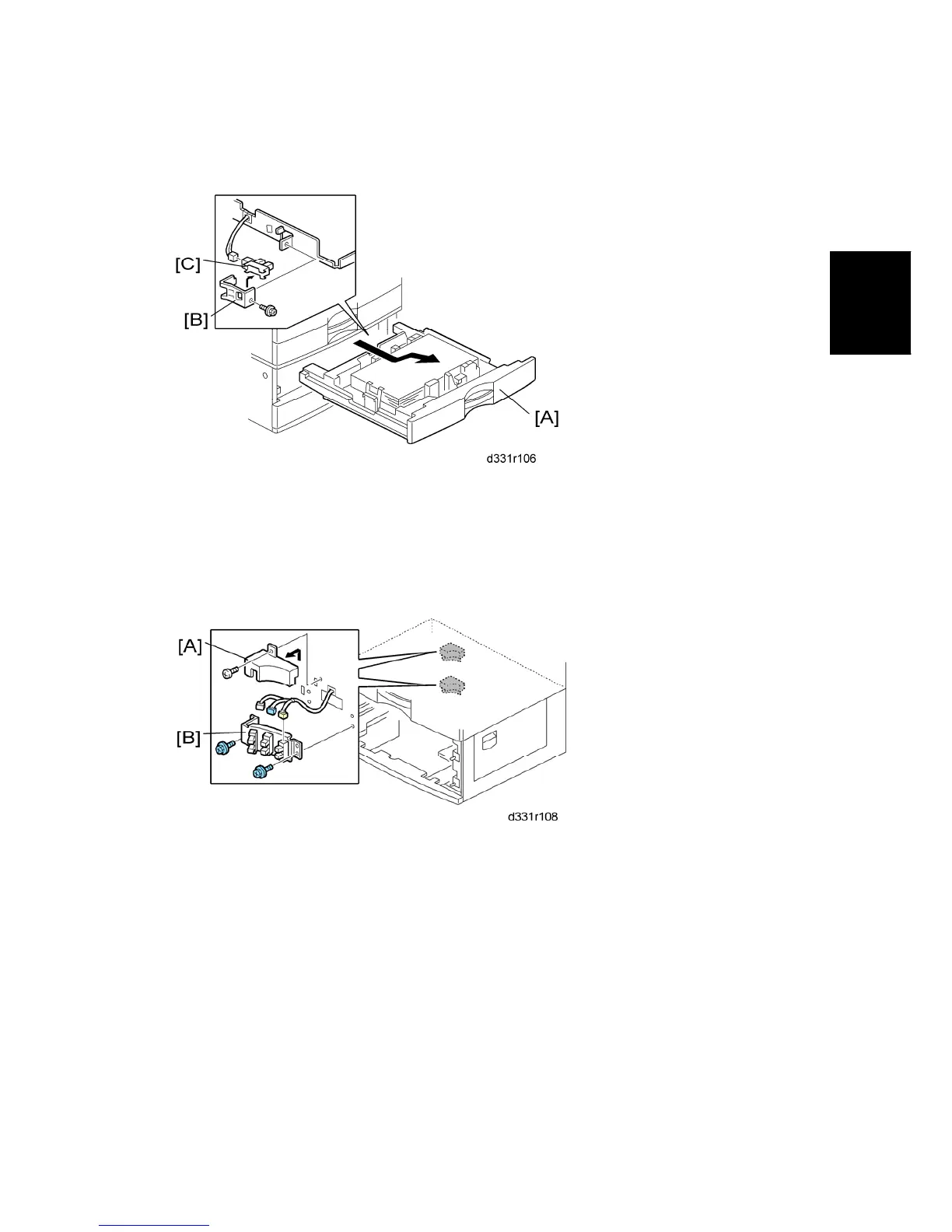

1.3.2 PAPER END SENSOR
1. Pull out the tray [A]
2. Sensor bracket [B] ( x 1,  x 1)
3. Paper end sensor [C] (hooks)
1.3.3 PAPER SIZE SENSORS
1. Pull out the two trays.
2. Sensor bracket cover [A] ( x 1)
3. Sensor bracket [B] ( x 3,  x 2)
4. Paper size sensors (hooks)
