Original Feed Drive
SM 11 D366
ARDF DF3030
D366

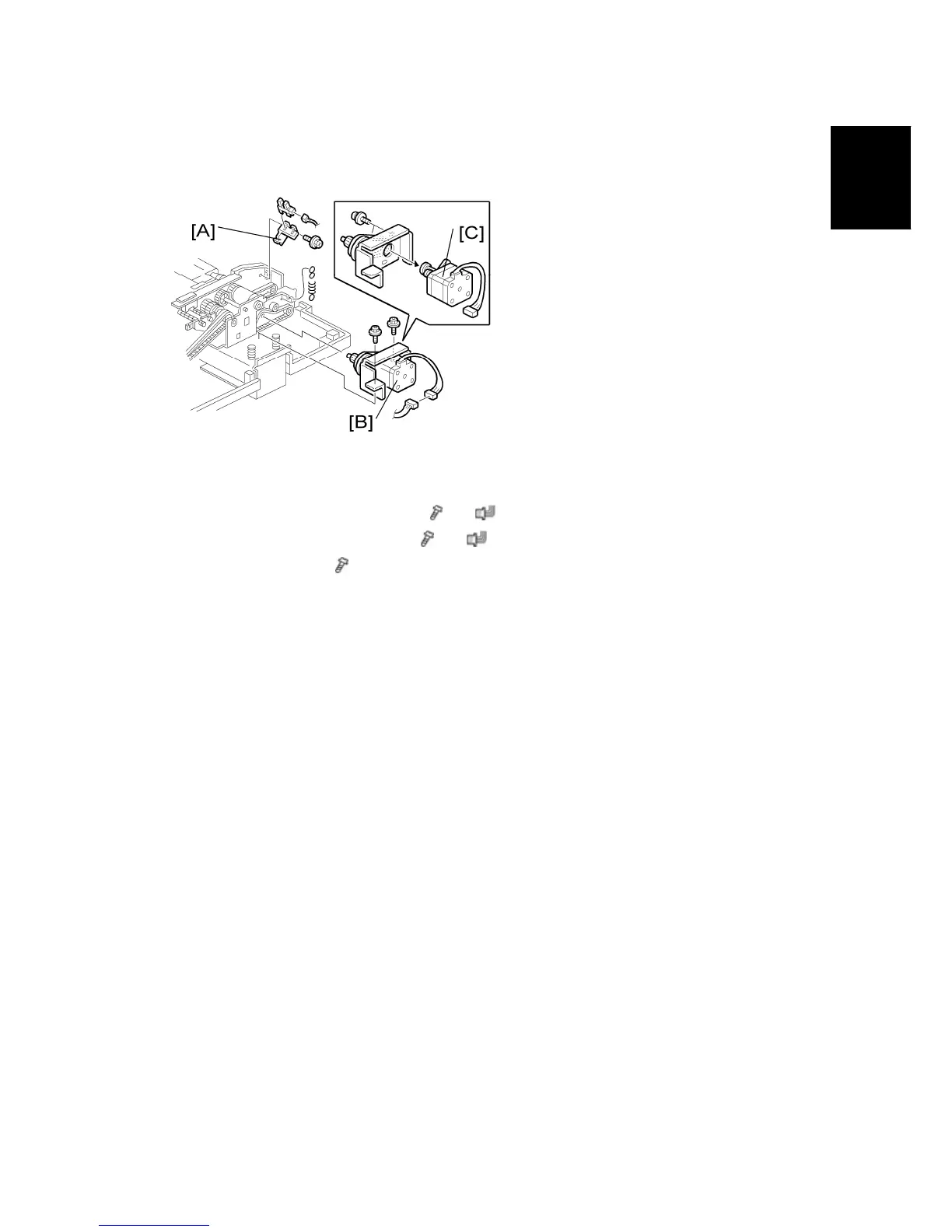

1.4.5 TRANSPORT MOTOR
1. Rear cover (see "Rear Cover")
2. Harness guide (see "Pick-up Solenoid")
3. Left cover sensor with bracket [A] (
x 1, x 1)
4. Transport motor with bracket [B] (
x 2, x 1, spring x 1)
5. Transport motor [C] (
x 2)
