Component Layout
SM 13 D366
ARDF DF3030
D366

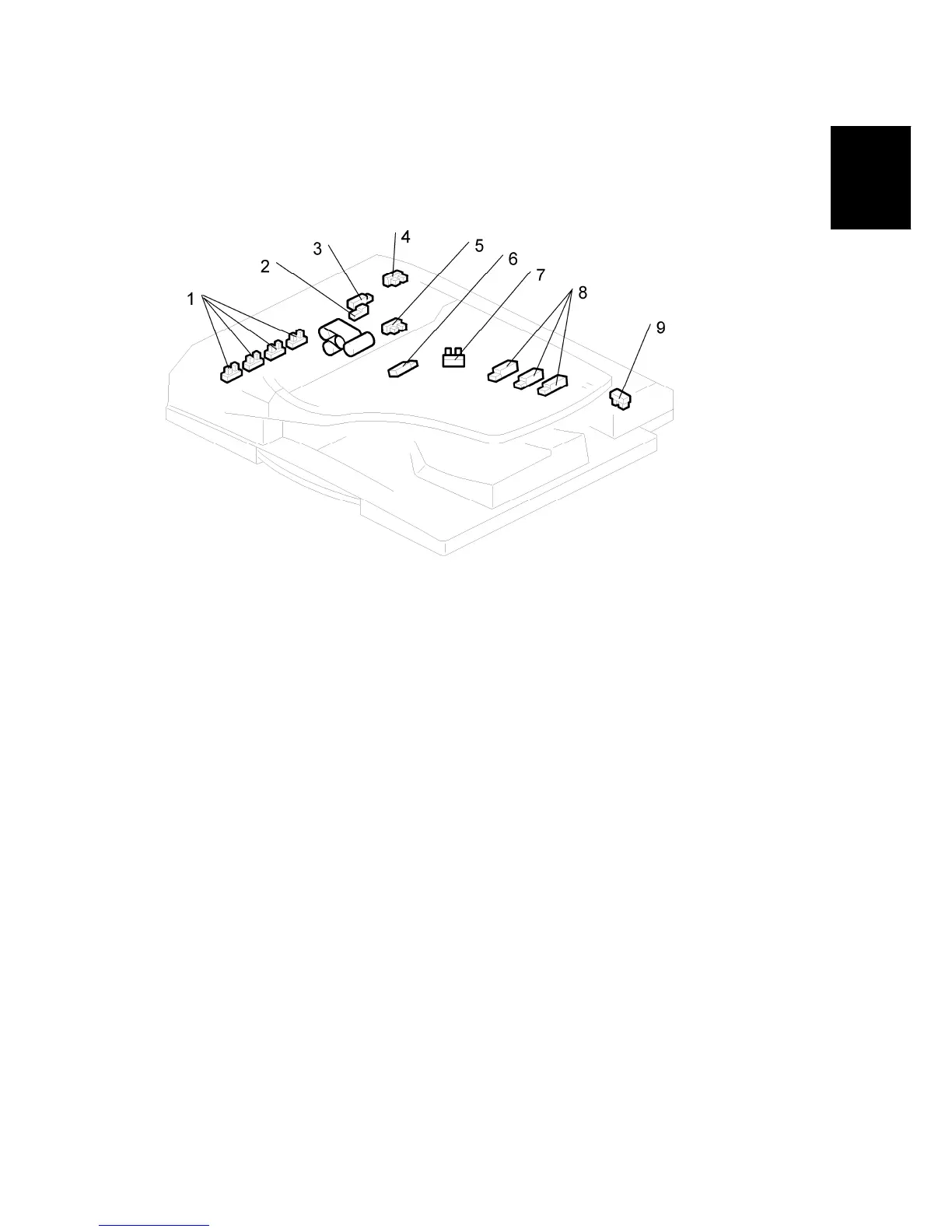

2.1.2 ELECTRICAL COMPONENT LAYOUT
Sensors
1. Original Width Sensor
2. Skew Correction Sensor
3. Registration Sensor
4. Cover Sensor
5. Original Set Sensor
6. Exit Sensor
7. Original Sensor
8. Original Length Sensor
9. DF Position Sensor
