Component Layout
D366 16 SM
PCBs
PCB1 Main
Interfaces the sensor signals with the copier,
and transfers the magnetic clutch, solenoid
and motor drive signals from the copier.
6

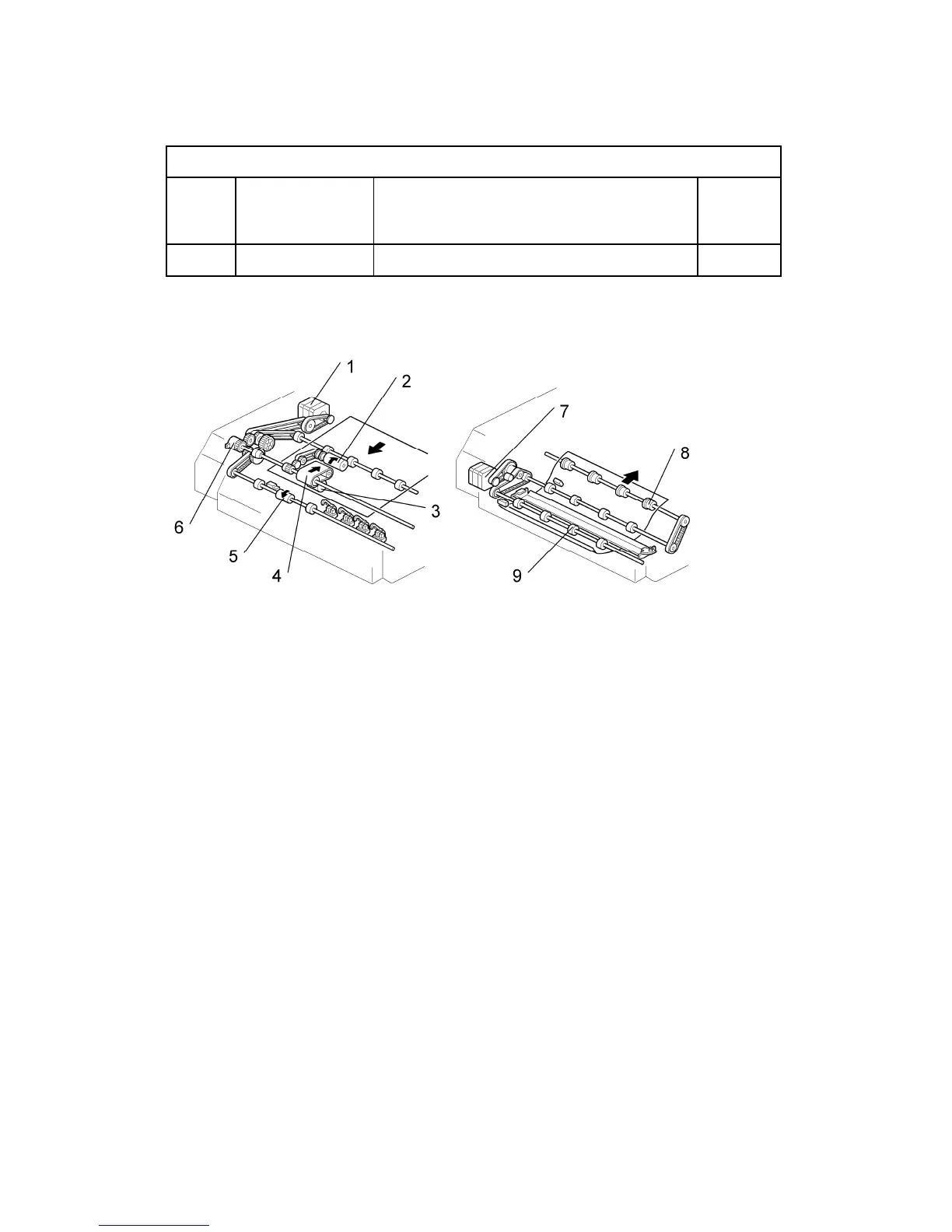

2.1.3 DRIVE LAYOUT
1. Feed Motor
2. Pick-up Roller
3. Separation Roller
4. Feed Belt
5. Skew Correction Roller
6. Feed Clutch
7. Transport Motor
8. Exit Roller
9. Registration Roller
 Feed Motor: Drives the feed belt, separation, pick-up, and skew correction rollers.
 Transport Motor: Drives the registration and exit rollers.
