Ricoh D037 User Manual

Fusing
SM 4-97 D037/D038/D040/D041
Replacement
& Adjustment

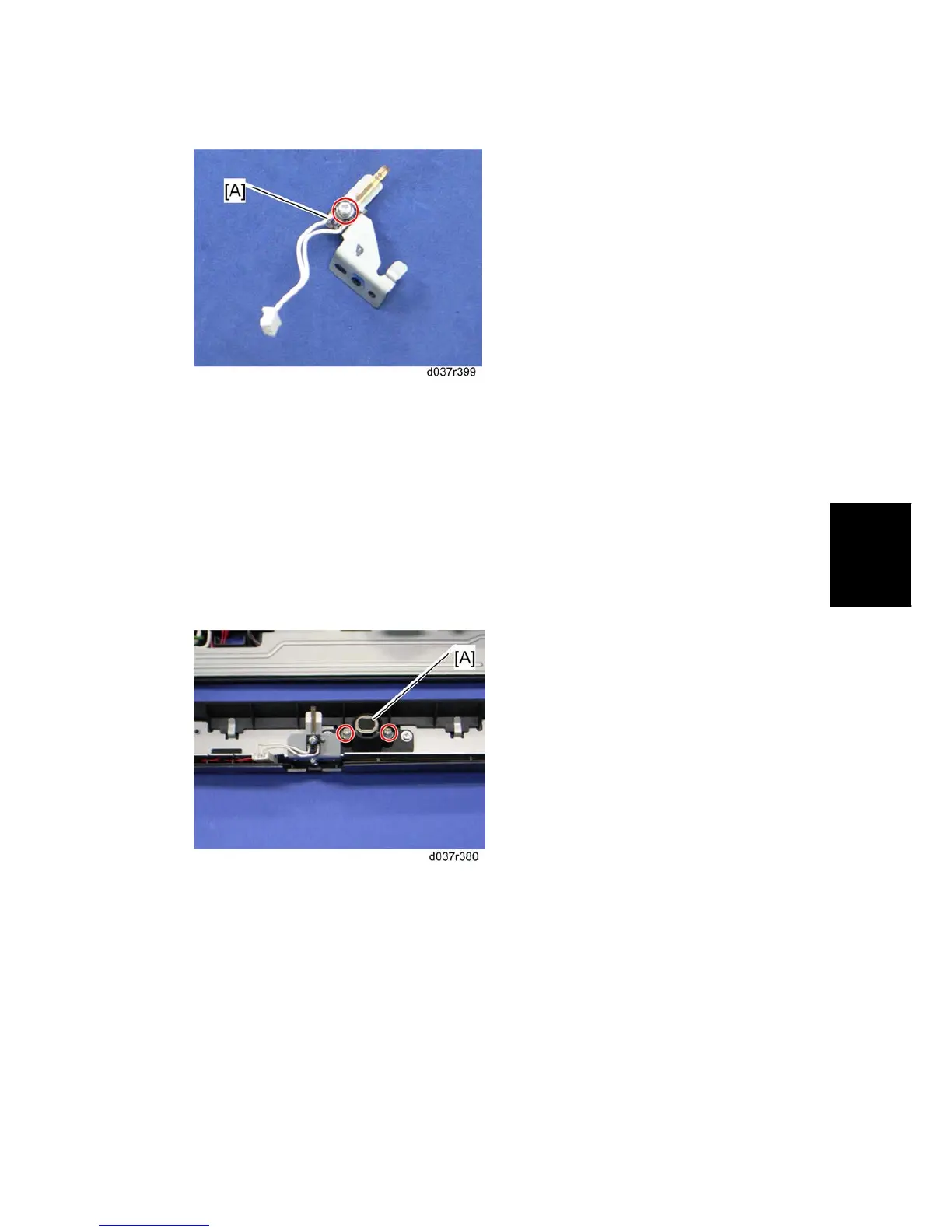

4. Pressure roller thermistor: End [A] ( x 1)
Cleaning Requirement
The pressure roller thermistors (center and end) require cleaning maintenance at every 60
K interval. Clean the pressure roller thermistors (center and end) with a dry cloth.
4.11.14 PRESSURE ROLLER THERMOSTAT
1. Fusing unit ( Section: Fusing Unit)
1. Fusing belt with rollers ( Section: Fusing Belt)
2. Pressure roller ( Section: Pressure Roller)
3. Pressure roller thermostats [A] ( x 2)
4.11.15 THERMOPILE
1. Fusing unit ( Section: Fusing Unit)
