Drive Unit
D037/D038/D040/D041 4-78 SM

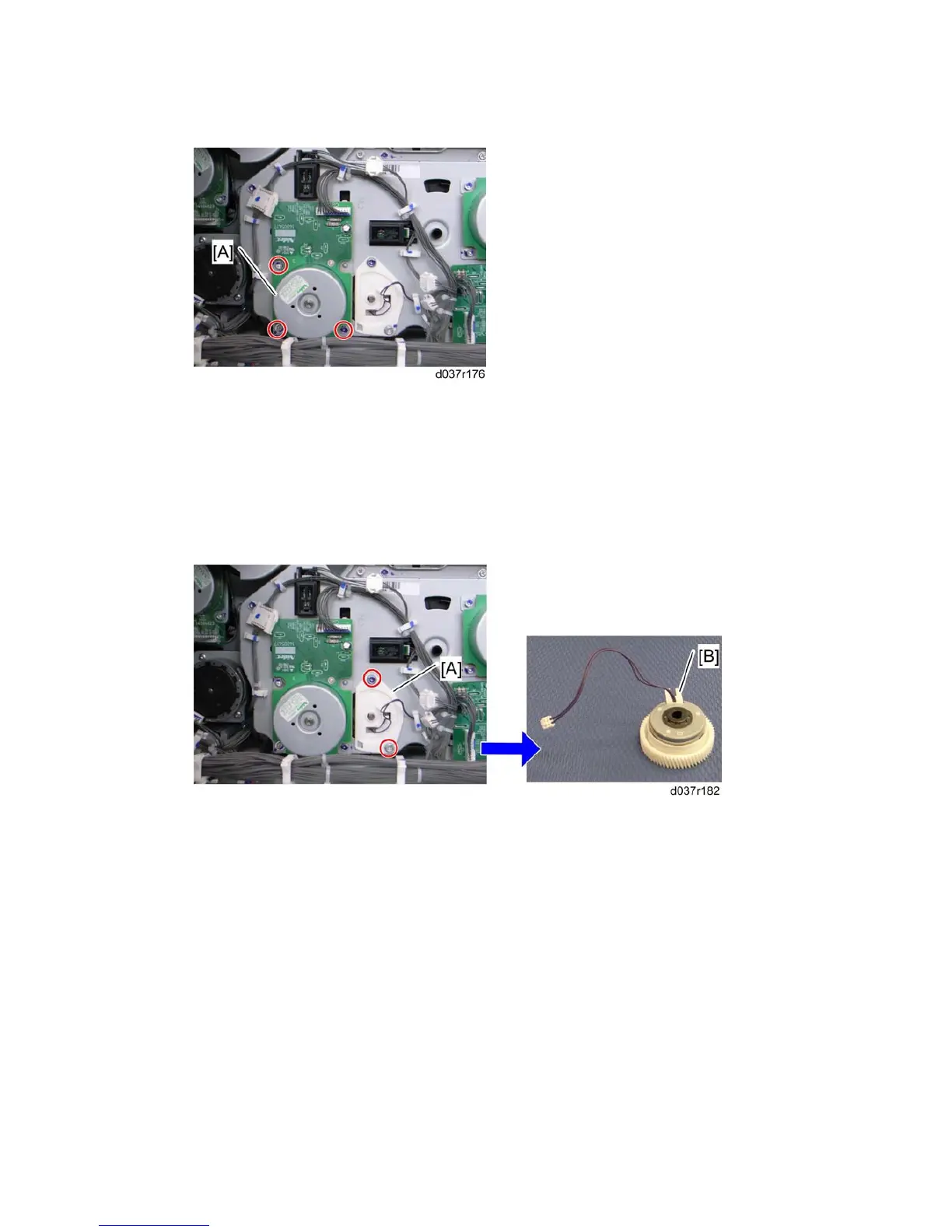

3. Drum/Development motor: K [A] ( x 3,  x 1)
4.10.8 DEVELOPMENT CLUTCH: K
1. Rear cover ( Section: Rear Cover)
1. Rear lower cover ( Section: Rear Lower Cover)
2. Open the controller box. ( Section: Controller Box)
3. Drum/Development Motor: K ( Section: Drum/Development Motor: K)
4. Remove the bracket with the development clutch: K [A] ( x 2, = x 1,  x 1)
5. Remove the development clutch: K [B] from the bracket.
4.10.9 FUSING/PAPER EXIT MOTOR
1. Rear cover ( Section: Rear Cover)
1. Rear lower cover ( Section: Rear Lower Cover)
2. Open the controller box. ( Section: Controller Box)
3. Drum/Development Motor: K ( Section: Drum/Development Motor: K)
