2.Mechanism
26

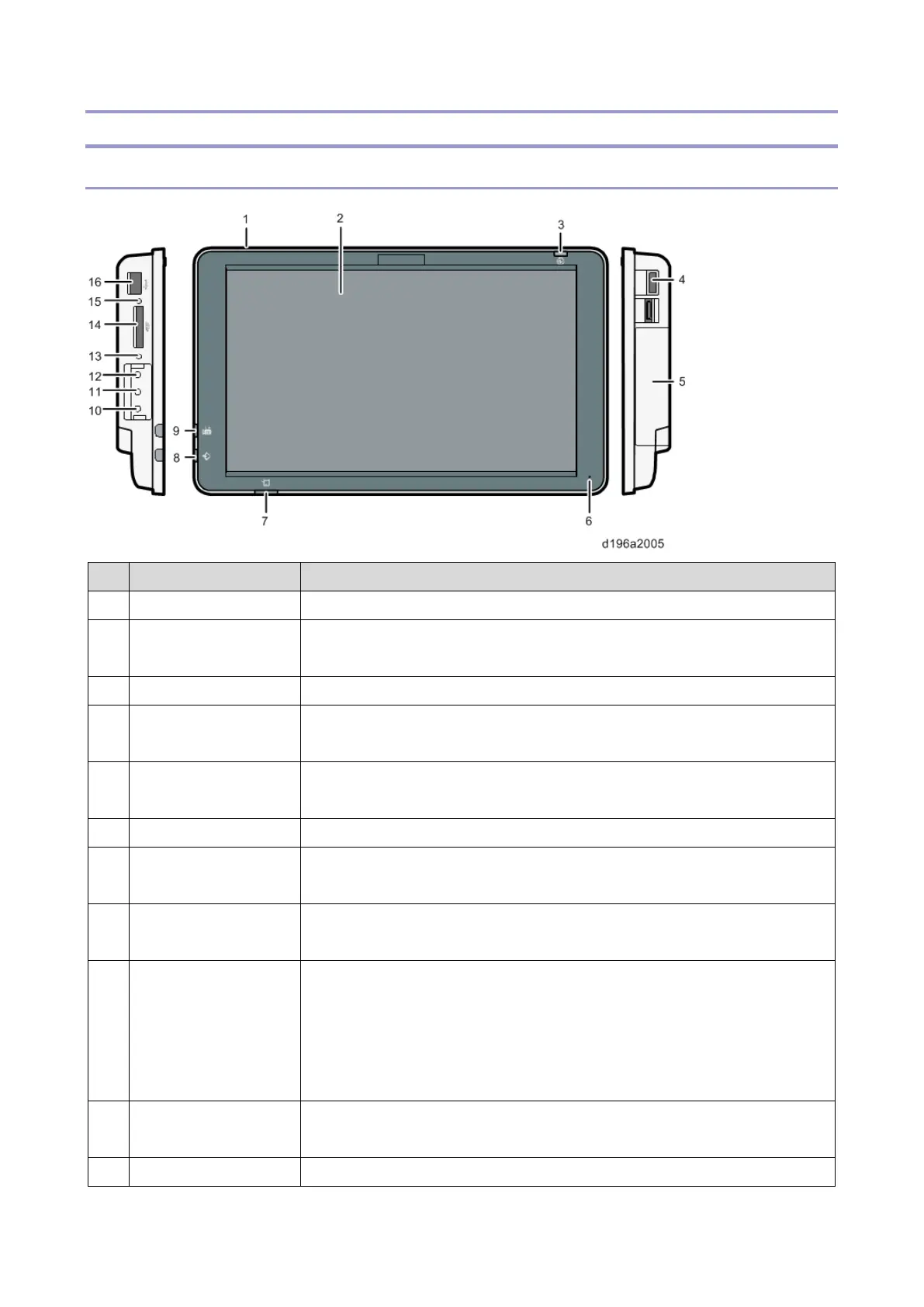

Panel Components/Screen Layout
Components of the Control Panel
No. Name Description
1 Speaker There is currently no function that uses this.
2 Display panel Displays icons for functions and applications. Displays the operation screens,
operation keys and other information.
3 Main power indicator Indicates power OFF/ON status.
4 USB slot for digital
cameras
A digital camera can be connected here.
5 USB slot for NFC card
readers
A near field communication (NFC) device can be connected here.
6 Microphone There is currently no function that uses this.
7 [Check Status]
indicator
Indicates system status.
8 Data In indicator Flashes when the machine receives data from a printer driver or LAN-Fax
driver.
9 Fax indicator Indicates fax status.
• During communication: Flashes
• When fax documents have been received using Substitute Reception:
Lights
• When the machine has received a confidential fax document: Lights
10 Extended Feature key
(EX3)
Used for system maintenance, such as control panel self-check.
11 Extended Feature key Used for system maintenance, such as control panel self-check.
To Next Page
