3.SP Mode Tables
369

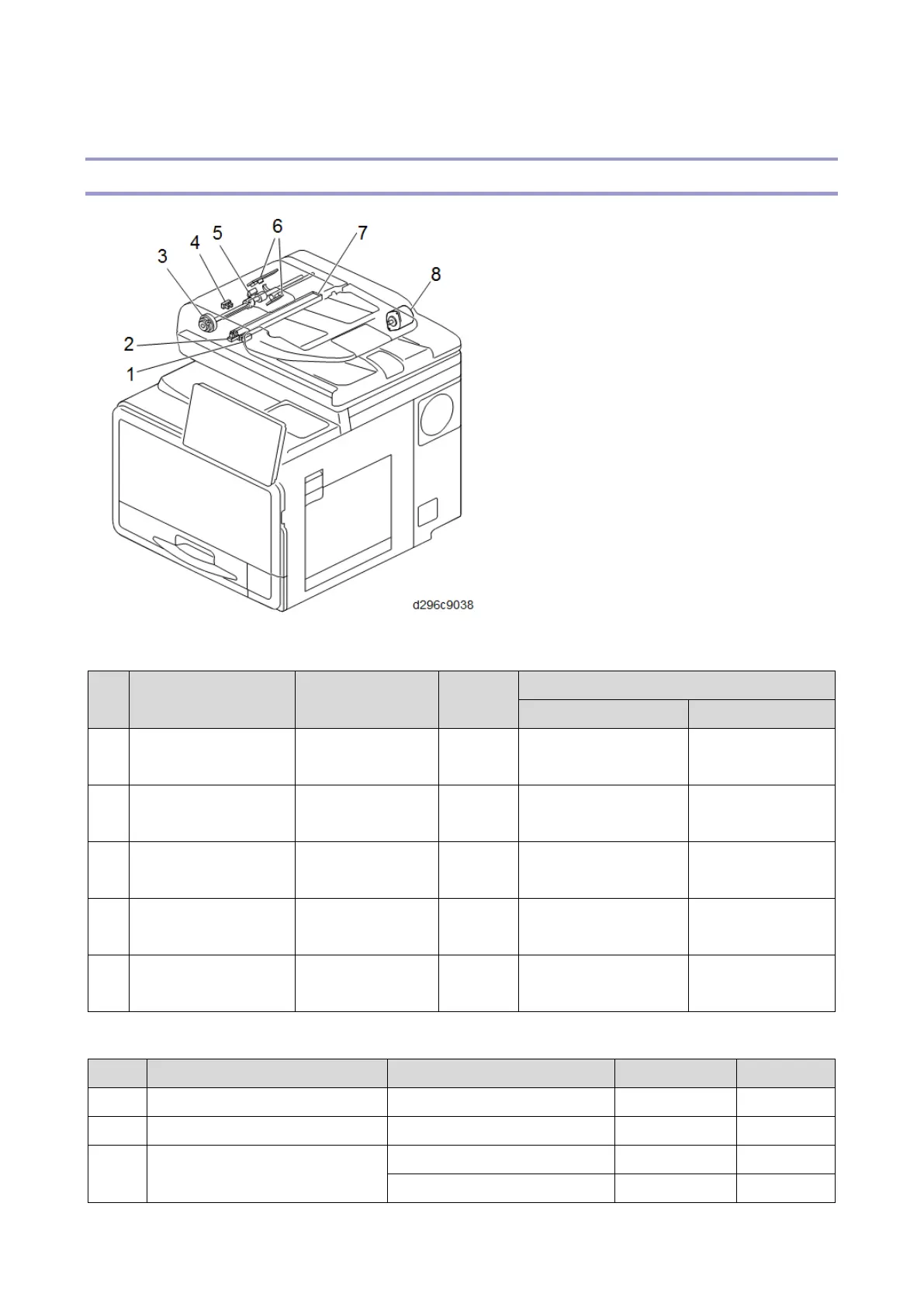

Input and Output Check
ADF Unit
Input Check
No. Part Name SP Name SP No. Reading
0 1
1 Top cover set sensor Feed Cover Sensor 6-011-
015
Close Open
2 Original set sensor Original Detection 6-011-
009
Not set Set
4 ADF feed sensor DF Feed Sensor 6-011-
010
Paper detected Paper not detected
5 ADF registration
sensor
Registration
Sensor
6-011-
013
Paper detected Paper not detected
6 Double-feed sensor Page Keeper
Sensor
6-011-
024
Double feed not
detected
Double feed
detected
Output check
No. Part Name SP Name SP No. Remark
3 ADF feed clutch Feed Clutch 6-012-014
7 CIS unit: scanner lamp Scanner Lamp: Color 4-723-001
9 ADF drive motor Motor Forward 6-012-003
Motor Reverse 6-012-004
