Machine Overview
18

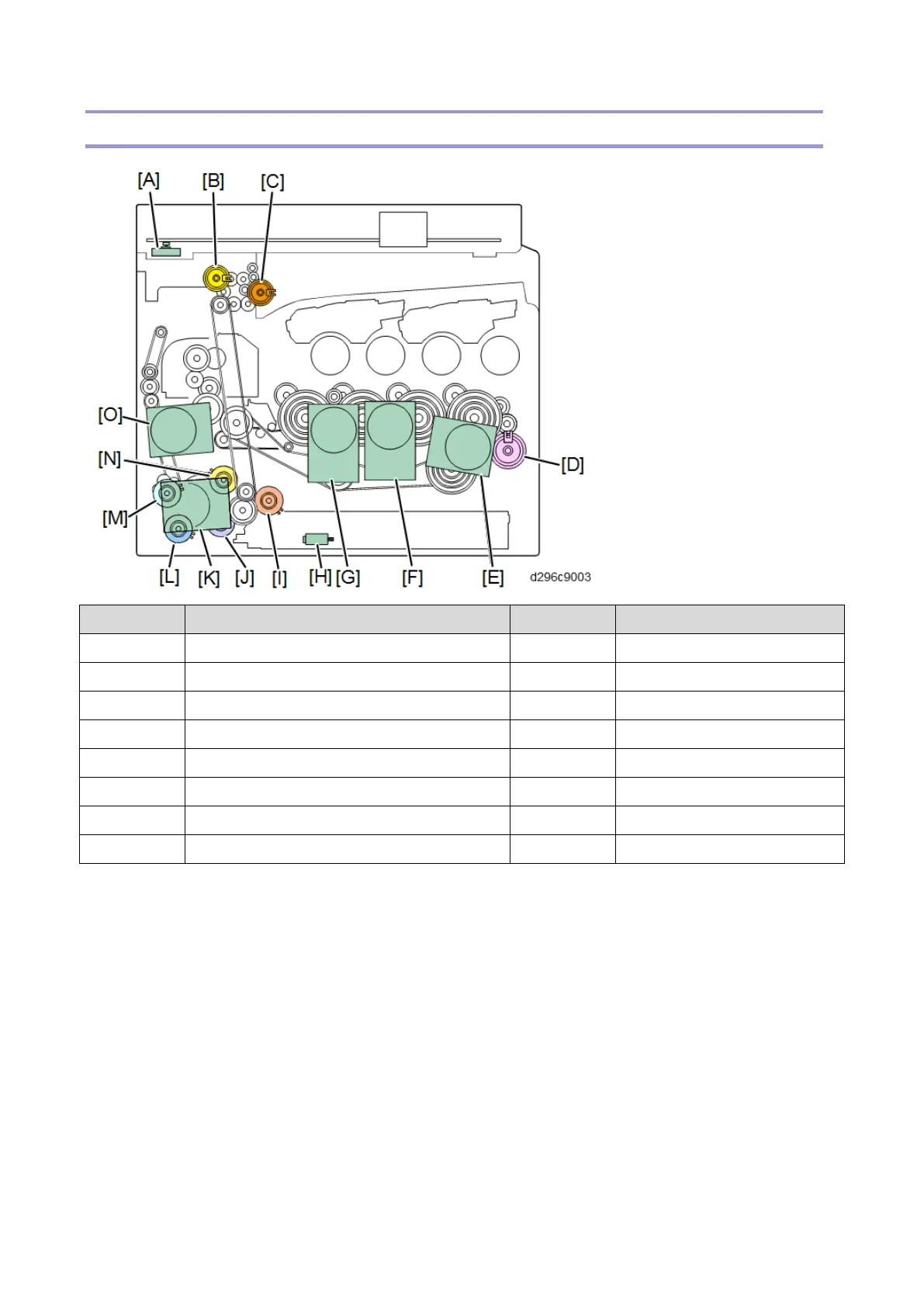

Drive Layout
Callout Item Callout Item
[A] Scanner motor [I] Paper feed clutch
[B] Paper exit clutch [J] Bypass lift clutch
[C] Reverse clutch [K] Transport motor
[D] Development clutch (K) [L] Bypass feed clutch
[E] Drum motor (K) [M] Duplex clutch
[F] Drum motor (CMY) [N] Registration clutch
[G] Development motor (CMY) [O] Fusing motor
[H] Tray lift motor
To Next Page
