ADF
220

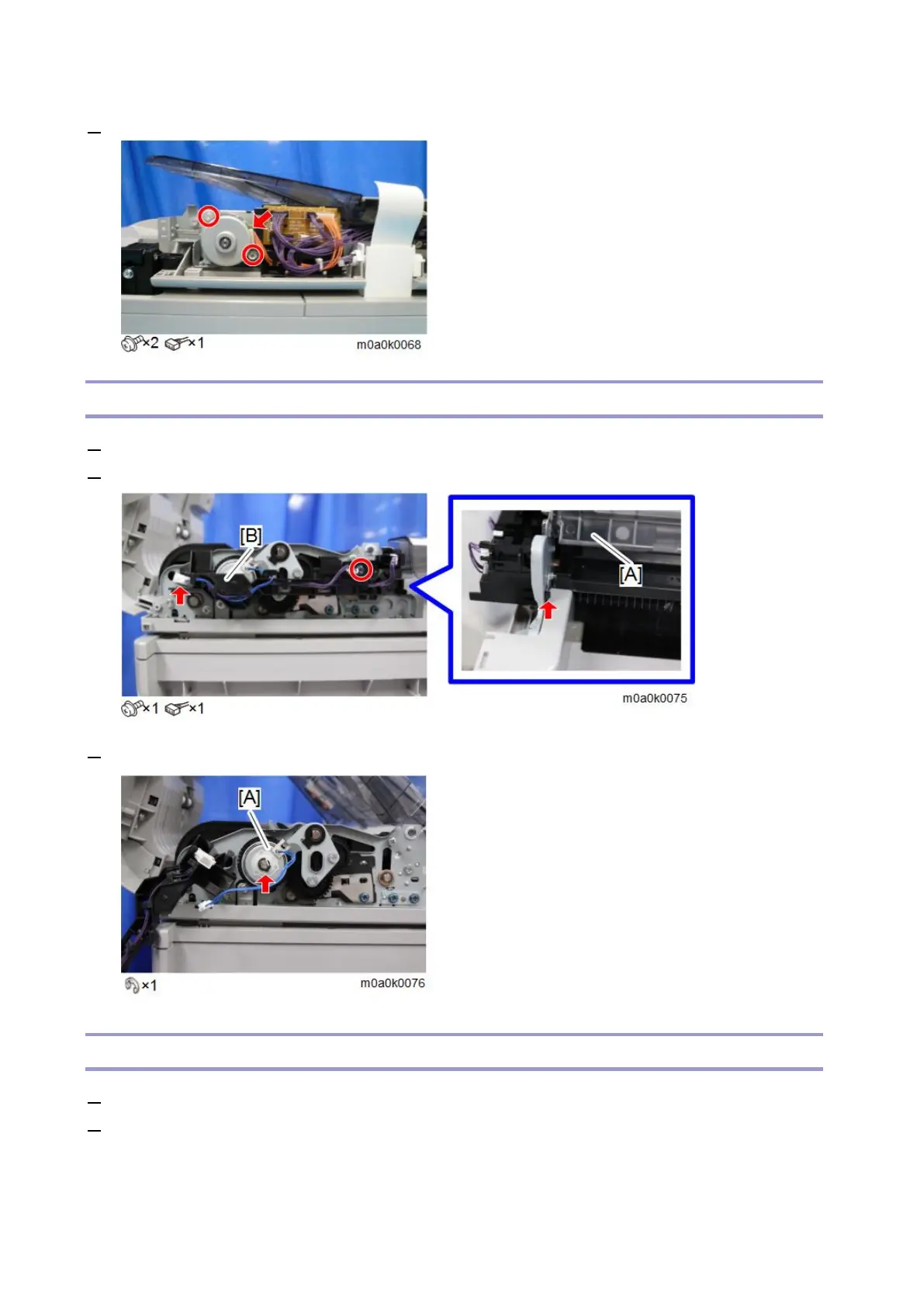

2. Remove the ADF drive motor [A].
ADF Feed Clutch
1. Remove the ADF front cover. (ADF Front Cover)
2. Release the hook while swinging up the original tray [A], and then remove the harness guide [B].
3. Remove the ADF feed clutch [A].
ADF Registration Sensor
1. Remove the ADF front cover. (ADF Front Cover)
2. Open the ADF [A].
