ADF
219

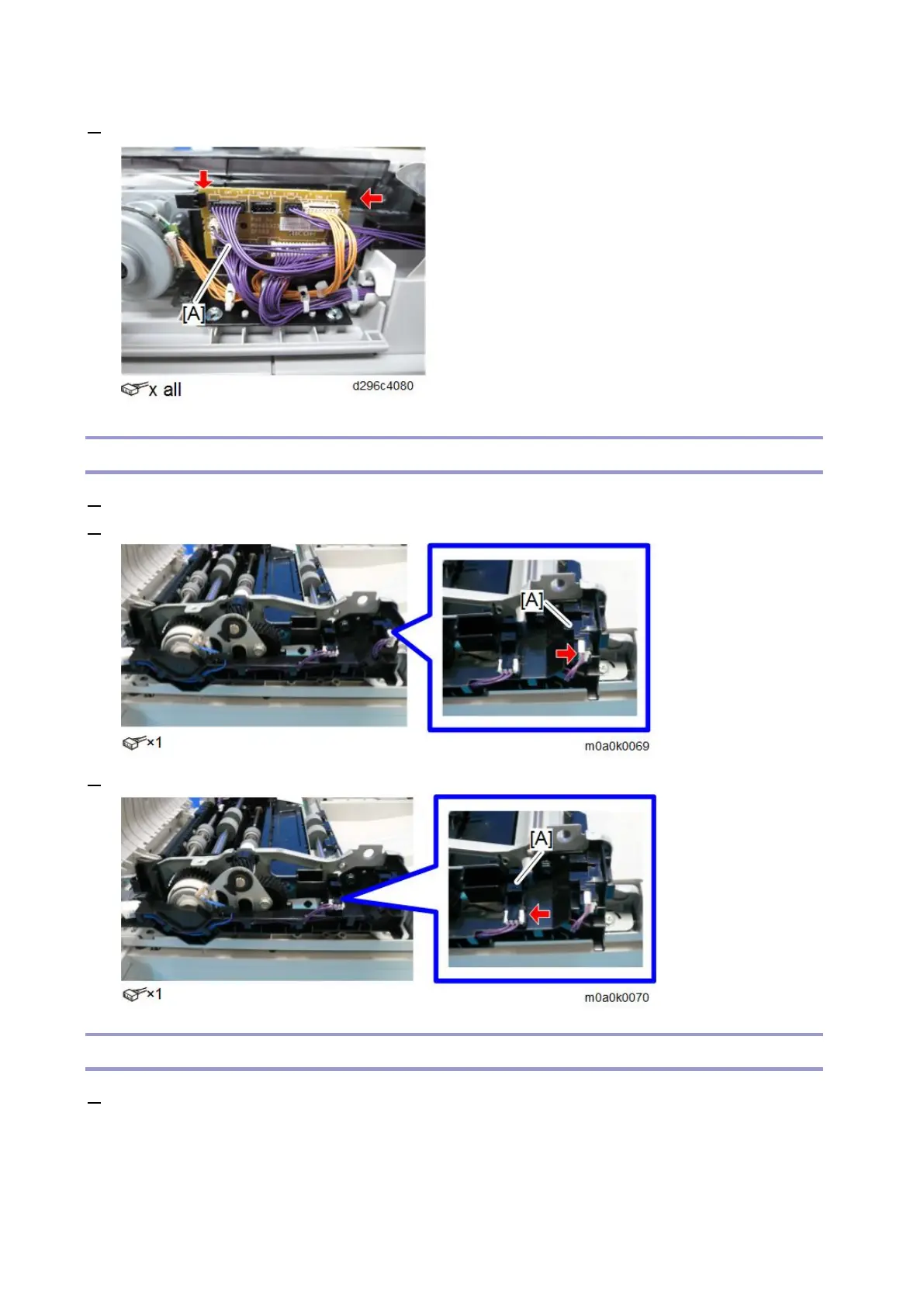

2. Remove the ADF relay board [A] while releasing the hook.
Top Cover Set Sensor, Original Set Sensor
1. Remove the ADF front cover (ADF Front Cover)
2. Remove the top cover set sensor [A].
3. Remove the original set sensor [A].
ADF Drive Motor
1. Remove the ADF rear cover. (ADF Rear Cover)
