1.Replacement and Adjustment
15
Tray Bottom Plate Lift Sensor and HP Sensor
Tray Bottom Plate Lift Sensor

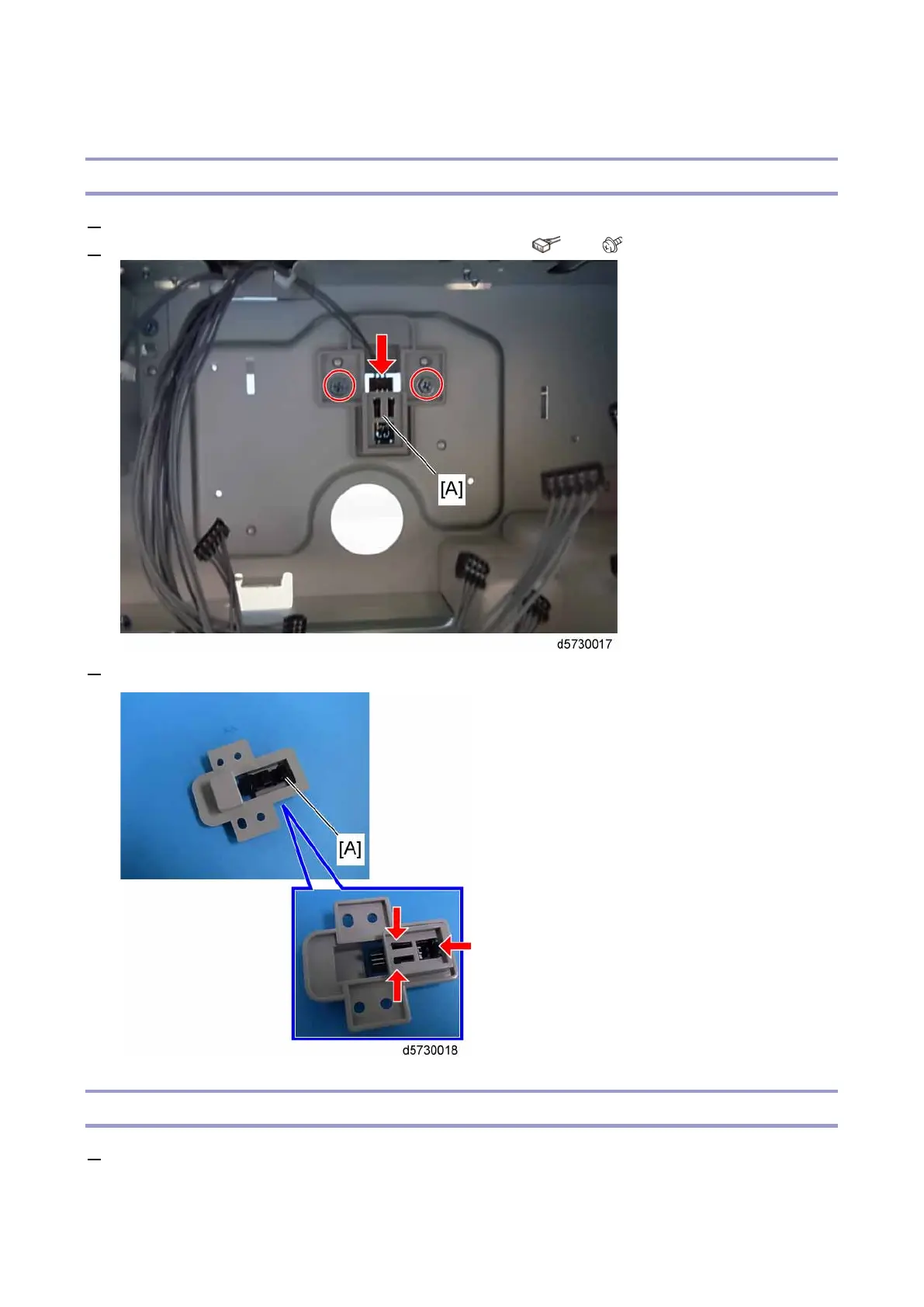

1. Remove the tray lift motor (Tray Lift Motor)
2. Remove the tray bottom plate lift sensor with the bracket [A]. ( × 1, × 2)
3. Remove the tray bottom plate lift sensor [A] (Hooks × 3)
Tray Bottom Plate HP Sensor
1. Remove the paper feed gear assembly (Vertical Transport Clutch and Relay Clutch)
