Page Keeper Type M28 (D3DQ-17)
118
Page Keeper Type M28 (D3DQ-17)
This option is only for NA/EU.

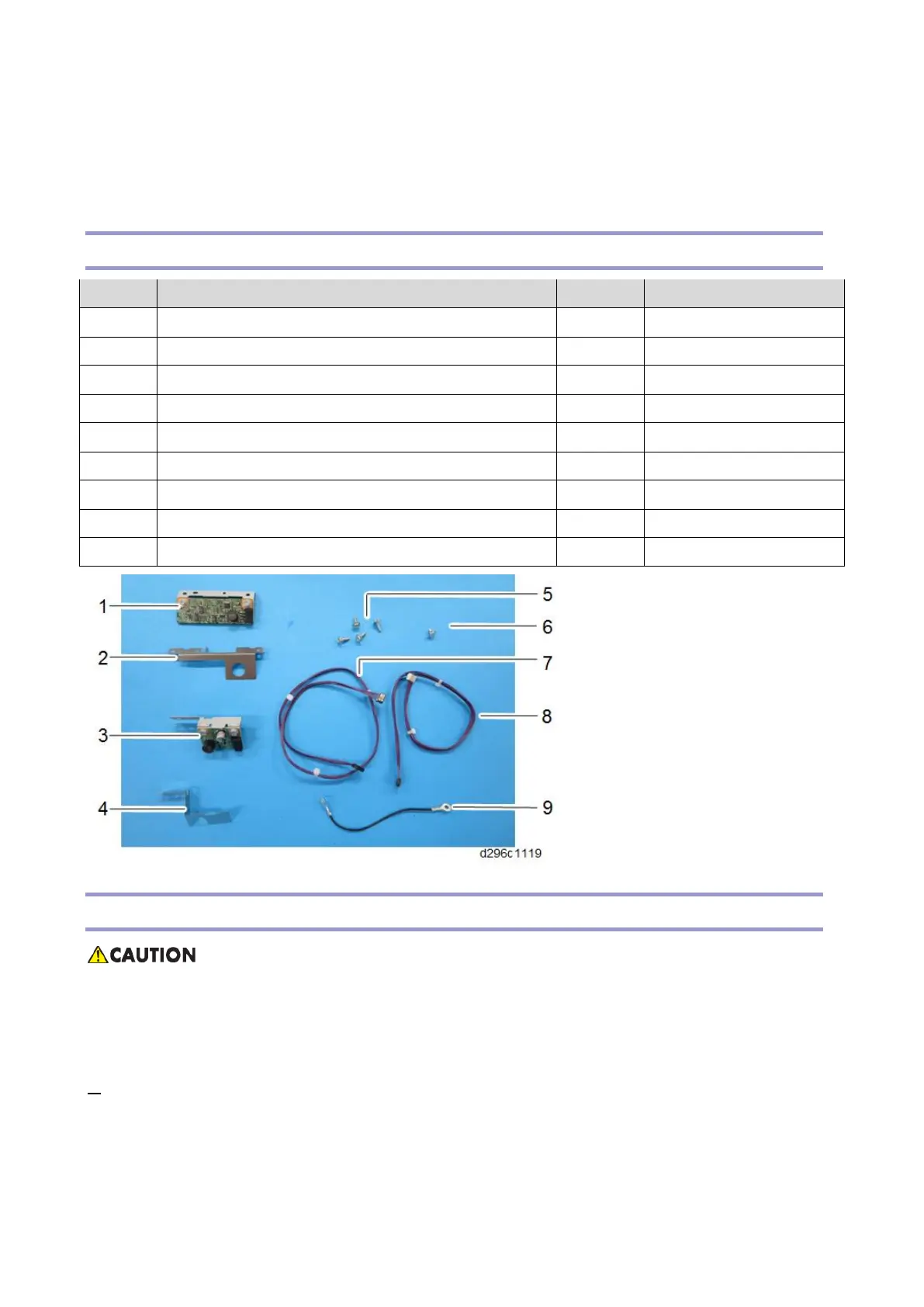

Accessory Check
No. Description Q’ty Remark
1 Double-feed sensor: Receiver 1
2 Ground plate: Receiver 1
3 Double-feed sensor: Emitter 1
4 Ground plate: Emitter 1
5 Tapping Screws: 3x10 4
6 Screw: M3x6 1
7 Harness: Receiver 1 Long harness
8 Harness: Emitter 1 Short harness
9 Harness: Ground wire 1
Installation Procedure
• Turn OFF the main power and unplug the power cord from the wall socket. If installing without
turning OFF the main power, an electric shock or a malfunction may occur.
Removing the ADF rear cover
1. Open the ADF top cover [A].
To Next Page
