Image/Paper Transfer
264

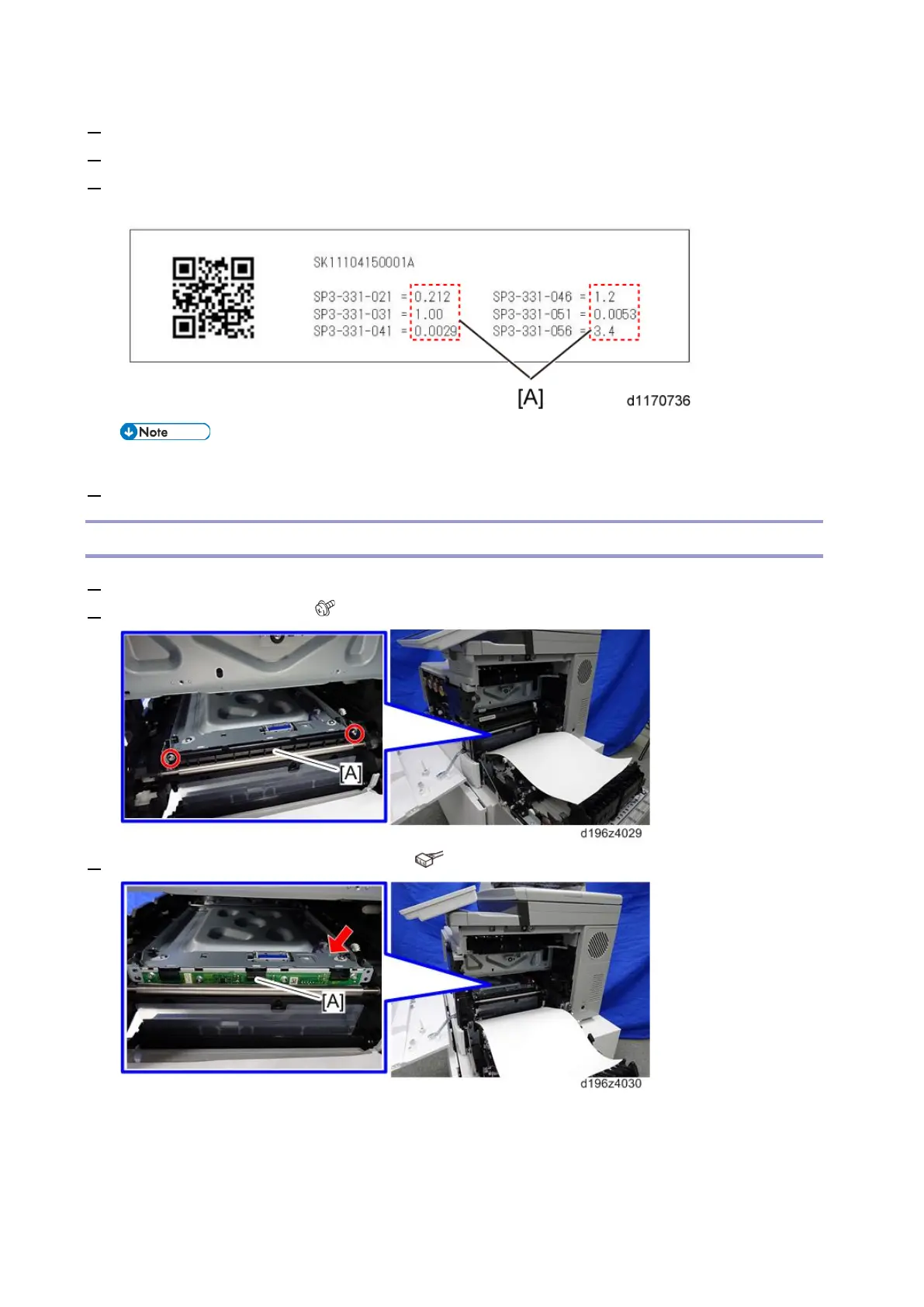

1. Plug in and turn on the main power.
2. Enter the SP mode.
3. Enter all correction coefficients [A] for the ID sensor with the SP modes, referring to the barcode sheet
provided with the new ID sensor board.
• For example, enter “1.2” with SP3-331-046.
4. Exit the SP mode.
ID Sensor Shutter Solenoid
1. Remove the ITB unit. (ITB (Image Transfer Belt) Unit)
2. Remove the guide plate [A]. ( × 2)
3. Remove the ID sensor [A] with the bracket. ( × 1)
To Next Page
