Drive
267
Drive

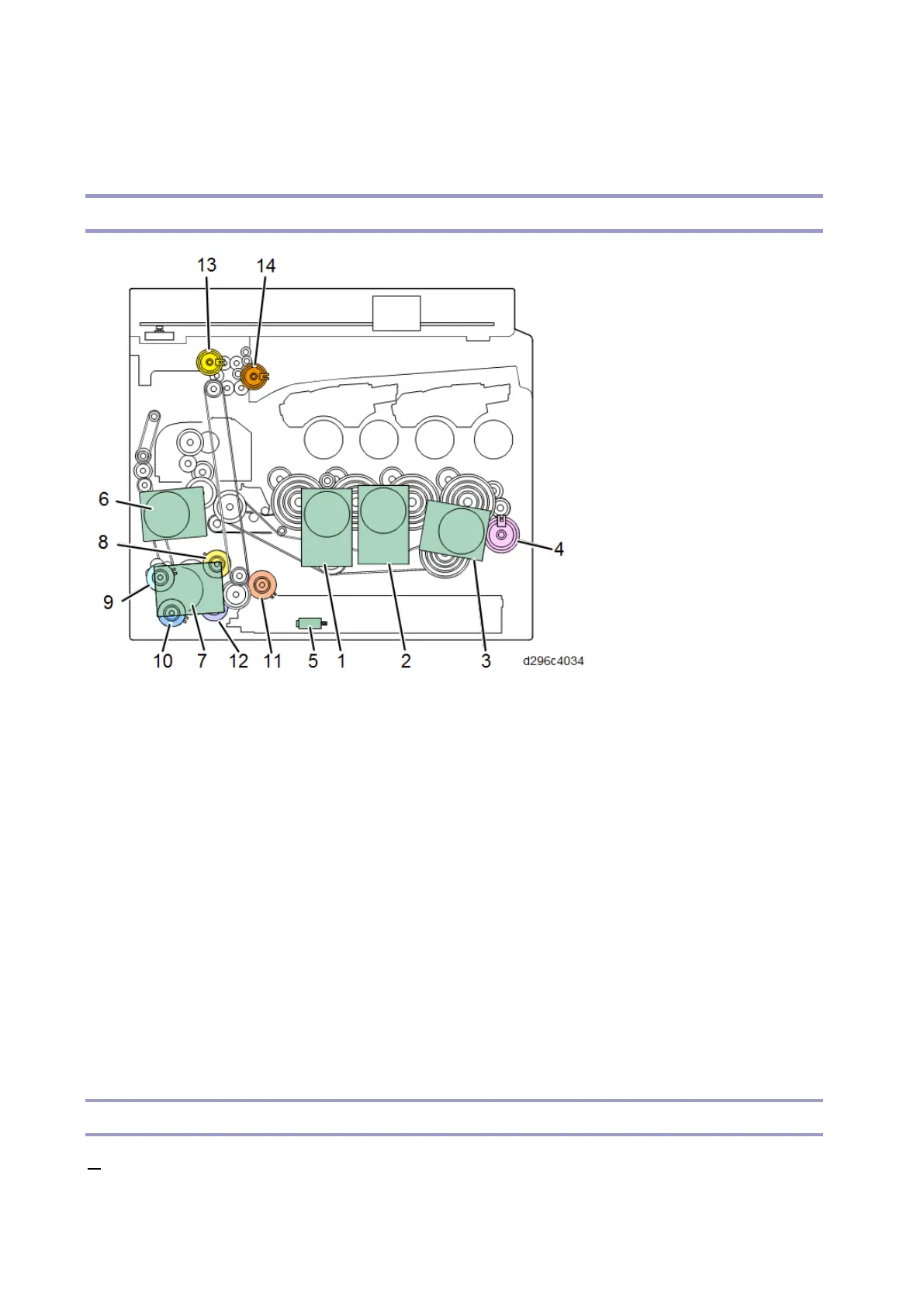

Overview
1. Development motor (CMY)
2. Drum motor (CMY)
3. Drum motor (K)
4. Development clutch (K)
5. Tray lift motor
6. Fusing motor
7. Paper transport motor
8. Registration clutch
9. Duplex clutch
10. Bypass feed clutch
11. Paper feed clutch
12. Bypass lift clutch
13. Reverse clutch
14. Paper exit clutch
Development Motor (CMY)
1. Remove the power pack (Transfer) with the bracket. (Power Pack (Transfer))
